Product Details:
|
| Type:: | LS-300B Automatic Small Box Making Machine | Brand Name:: | Long Xing Sheng |
|---|---|---|---|
| Machinery Test Report:: | Not Available | Place Of Origin:: | Guangdong, China |
| Core Components:: | Motor | ||
| Highlight: | 10mm Gift Box Making Machine,ISO9000 Gift Box Making Machine,90mm sweet box manufacturing machine |
||

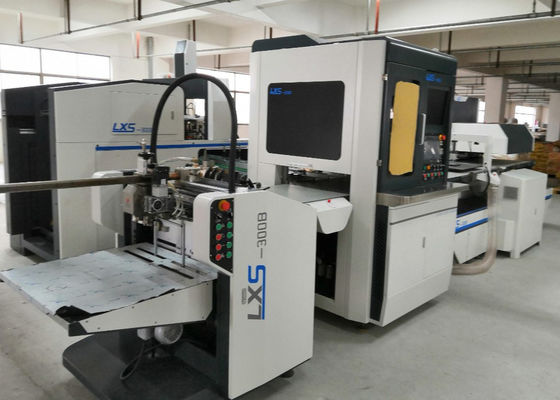

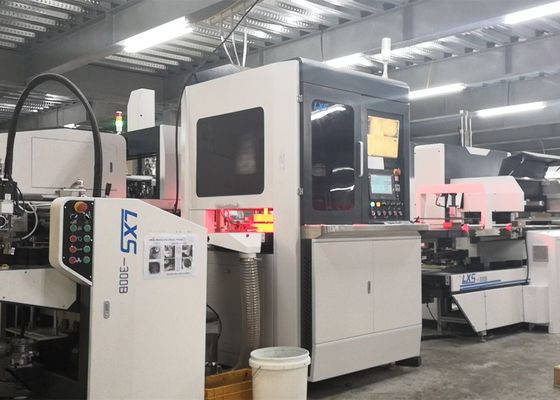

LS-300B Fully Automatic Rigid Gift Cardboard box making machine for cosmetic box and gift box making
1. Gluing part(paper gluing):The paper is separated into single sheet, the glue is evenly coated on the face paper
through the roller, and then the glued face paper is transported to the box positioning part by the conveyor belt.
2. Positioning part(box positioning):Grab the box by robotic arm, and position it on the glued paper by camera.
3. Forming part(box forming):Finish wrapping four sides and air pressing of box after positioning, and finally move
the finished boxes out of the production line from both sides of the machine.
| Type | LS-300B |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L80-400mm |
| Box size(width) | W60-300mm |
| Box size(height) | H15-100mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-35 pcs/min |
| Motor power | 14kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3750kg |
| Machine dimension | L6600*W3800*H3000mm |
