450Plus Automatic Paper Box Making Machine Gift Manufacturing Food Box

Large Image : 450Plus Automatic Paper Box Making Machine Gift Manufacturing Food Box

Product Details:

Place of Origin:	China
Brand Name:	Longxingsheng
Certification:	CE, ISO9001
Model Number:	LS-450plus

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	With paper,film and by wooden crate.
Delivery Time:	7-15 work days
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:	15sets/month

Contact Now

450Plus Automatic Paper Box Making Machine Gift Manufacturing Food Box

Description

Type:	LS-450Plus	Production Capacity::	15-45sheet/min
Payment Terms::	L/C, T/T	Certification::	CE
Driven Type::	Electric	Automatic Grade::	Full Automatic
Highlight:	PLC Smart Paper Box Making Machine , 0.6MPa Paper Box Making Machine , 45sheet/min Rigid Box Making Machine

LS-450plus Automatic Visual Positioning machine for rigid box and hard cover


			Tyoe
			LS-450Plus

			Paper Size (max)
			L 800*W 600mm

			Paper Size (min)
			L 135*W 100mm

			Box Size (max)
			L 600*W 400*H 120mm

			Box Size (min)
			L 80* W 65*H 15mm

			Hard cover (max)
			L 750* W 450mm

			Hard cover (min)
			L 1500* W 100mm

			Paper thickness
			100-350g/m²

			Paper stacking height
			450mm/100kg

			Working Speed
			15-45sheet/min

			Positioning accuracy
			±0.1mm

			Motor Power
			7.5kw/380v 3phase

			Heating Power
			8kw/380v 3phase

			Air pressure
			10L/min 0.6MPa

			Weight of Machine
			2800kg

			Machine Dimension
			L 5980mm*W 3180mm*H 2100mm

Product features:1.Adopt visual positioning system(with robot arm).high position accuracy( ±0.1mm).2.Simple structure and easy to operate.3.Adopts new designed paper feeding system which makes the feeding more stable.4.Can be infinitely extended to do a variety of special-shaped box.

Product advantag

			Robotic arm from Yamaha's working accuracy is
limited in 0.1mm

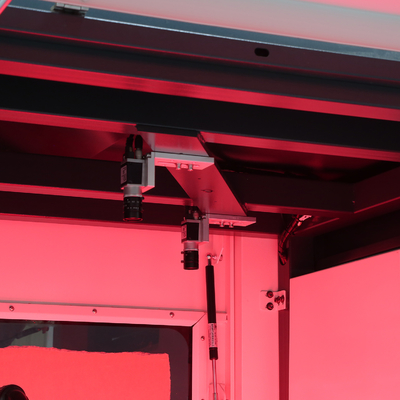

			Double imported 10 Mega Pixel Camera

			Integration glue collection tube,easy to washing

			More cardboard feeding devices

			Case&box double separately feeding devices,one button
change working model

FAQ:

1:Are you a manufacturer?Yes,we are factory manufacturing rigid box;case machines and provide perfect OEM and prompt after-sale service. 2: How is after-services of your factory?We have after-sale department and provide one year warranty service. 3:Where is your factory?We are in Dongguan,Guangdong Province, near Shenzhen City (1 hour by train). 4:How can I pay my order?We accept T/T. Mostly 30% in advanced,the rest need paid before shipping. 5:How can we ensure the safe production for producing ?The machine is equipped with a series of sensors and automatic overload protective devices to assure the machine runs safely and effectively.
