300D Automatic Small Box Making Machine Mobile Flip Cover Making Equipment

Large Image : 300D Automatic Small Box Making Machine Mobile Flip Cover Making Equipment

Product Details:

Place of Origin:	China
Brand Name:	Longxingsheng
Certification:	CE/ISO-9001
Model Number:	LS-300D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	with film, paper and wooden crates
Delivery Time:	7-30 workdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	30 Sets per month

Contact Now

300D Automatic Small Box Making Machine Mobile Flip Cover Making Equipment

Description

Type::	Packaging Line	Applicable Industries::	Packaging Factory
Showroom Location::	Italy	Paper Size(max):	L550*W450mm
Max Cardboard Size:	L550*W400mm	Box Size(length):	L50-350mm
Highlight:	350mm Length Small Box Making Machine , 40 pcs/min Small Box Making Machine , PLC Rigid Box Making Machine

Automatic Smart Small Box Making Machine For Hard Case Making Machine

Price vary with raw material cost, please contact our sales for latest prices.

300D Automatic Small Box Making Machine Mobile Flip Cover Making Equipment 0

**Specs of autoamtic high speed smart rigid box making machine**
Type	LS-300D
Paper size(max)	L550*W450mm
paper size(min)	L120*W70mm
Max cardboard size	L550*W400mm
Min cardboard size	L80*W70mm
Box size(length)	L50-350mm
Box size(width)	W50-250mm
Box size(height)	H12-100mm
Paper thickness	80-350g/m2
Cardboard thickness	0.8-3mm
Edge folding size	10-90mm
Turn in depth	15-80mm
Working speed	15-40 pcs/min
Motor power	16kw/380v 3phase
Heating power	8kw
Air pressure	40L/min 0.8MPa
Weight of machine	3600kg
Machine dimension	L6400W4000H3000mm

Machine parts


1. Control table	2. Tlectric box of postitioning part	3. Electric box of forming part

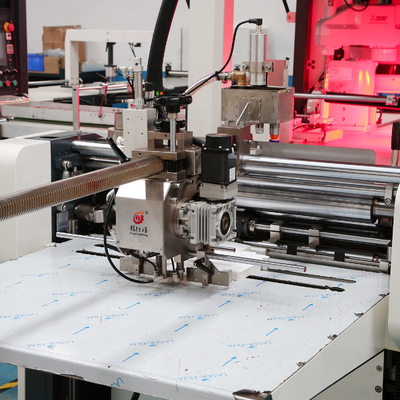

4. Servo motor paper feeding device	5. High accuracy gluing system	6. Corner pasting devices

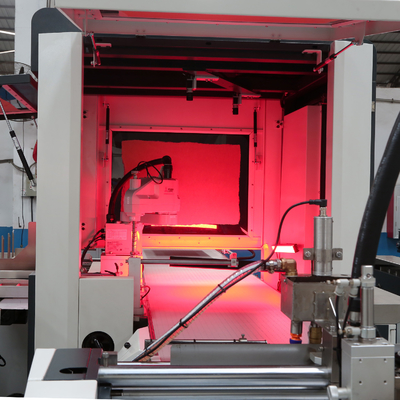

7. Double fixed camera	8. Positioning part	9. Second pressing device

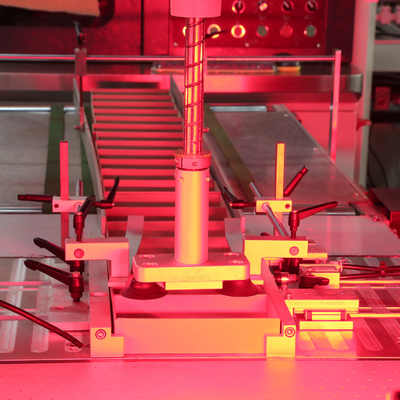

10. Box feeding device	11. Box forming parts	12. Automatic setting forming station

13. Upgrade tucking in device	14. Automatic setting brush	15. Overview of forming part

Quickly job setting
No need to change air pressing plate
No need to change tuck in blade
No need to move camera for size changing, quick job changing
Storage(memory) function for sizes setting

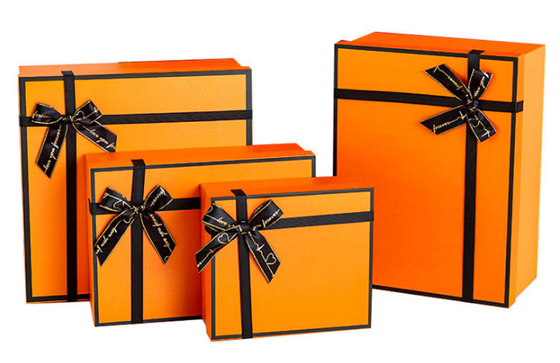

Make high-end boxes
Special pick up and wrapping system
Can use the carton paper to wrap the inner box
Can make smallest size box, such as 505012mm

Suitable for changeable orders
Such as 1,000 pcs for one order
