Product Details:
|
| Type:: | Booking Machine | Applicable Industries:: | Advertising Company, |
|---|---|---|---|
| Condition:: | New | Application:: | Chemical |
| Motor Power: | 13kw/380v 3phase | Air Pressure: | 40L/min 0.8MPa |
| Highlight: | 13kw Carton Box Making Machine,3phase Carton Box Making Machine,0.8MPa Rigid Box Making Machine |
||
| Type | LS-1246D |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-120mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-45 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 4300kg |
| Machine dimension | L6600*W4200*H3000mm |

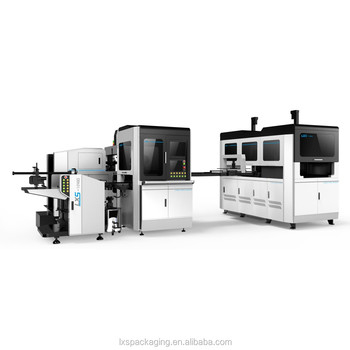

Fully automatic rigid box making machine is the best equipment to make top grade rigid box. Reasonable design and credible performance. It consists of feeder part, corner pasting part, gluing part, positioning part and wrapping part.
The machine adopts advanced programmable logic controller, photoelectric tracking system, accurate hydraulic pneumatic deviation correcting system, and convenient touch screen human machine interface (Chinese and English operating panel), etc. to achieve automatic cardboard and paper delivery, four corners pasting, paper gluing, auto conveyance, positioning, pressing, automatic box drawing and catching, wrapping and all the work done consecutively just in one time to achieve high speed production.
Price vary with raw material cost, please contact our sales for latest prices.
