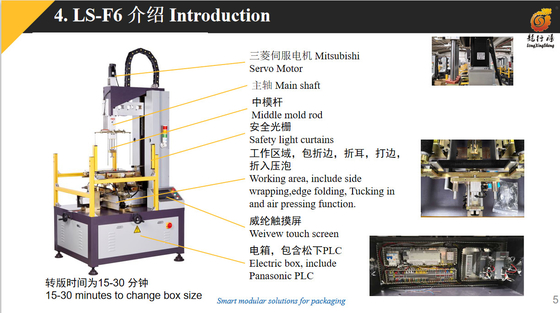

LS-F6 Rigid box making machine is applied for wrapping the glued paper in the pasted box. It can finished side wrapping, edge folding (≤50 mm), tucking in and air pressing at one time. It has applied Pneumatic and Compressor air to driving the machine running.
This machine is setting by manual, which will cost around 15 minutes. It is an ideal equipment for customer which has different
quantity orders. Especially the customer seeking for higher quality products.
It has two edge folding model and four types tucking in model. The shortest time of one box finished is 1.7 S. The max speed can reach 30 pcs/min to certain boxes.
Feature of Rigid Box Making Machine
1. Multi-functional, LS-1246G has rigid box making function, hardcover positioning function.
2. Can connect with four sides wrapping machine to make hard cover.
3. No need to move camera.
4. Max box length 600mm, Max box width 400mm, Max box height 120mm.
5. Edge folding length 10-100mm
6. Wrapping into bottom length 100mm
7. YAMAHA Robotic arm
8. Double Germany cameras (1000 pixels)
9. Mitsubishi servo motor.
10. Panasonic PLC
11. Anti-leaking gluing system
12. Servo motor feeding system
13. Working speed of opposite folding box 19 pcs/min, Four side folding box 22 pcs/min.
Price vary with raw material cost, please contact our sales for lastest prices.
