High Speed Smart Carton Box Stretch Wrapping Machine For Phone Cover Making

High Speed Smart Carton Box Stretch Wrapping Machine For Phone Cover Making
High Speed Smart Carton Box Stretch Wrapping Machine For Phone Cover Making High Speed Smart Carton Box Stretch Wrapping Machine For Phone Cover Making High Speed Smart Carton Box Stretch Wrapping Machine For Phone Cover Making High Speed Smart Carton Box Stretch Wrapping Machine For Phone Cover Making

Large Image :  High Speed Smart Carton Box Stretch Wrapping Machine For Phone Cover Making

Product Details:
Place of Origin: China
Brand Name: Longxingsheng
Certification: CE/ISO-9001
Model Number: LS-1246D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: with film, paper and wooden crates
Delivery Time: 7-30 workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 Sets per month
Contact Now

High Speed Smart Carton Box Stretch Wrapping Machine For Phone Cover Making

Description
Usage:: Paper Forming Machine Brand Name:: LXS
Video Outgoing-inspection:: Provided Dimension(L*W*H):: L6600 * W4200 * H3000mm
Place Of Origin:: Guangdong, China Warranty Of Core Components:: 1 Year
Highlight:

Smart Carton Box Stretch Wrapping Machine

,

0.1mm Carton Box Stretch Wrapping Machine

,

High Speed Phone Cover Manufacturing Machine

Product Overview

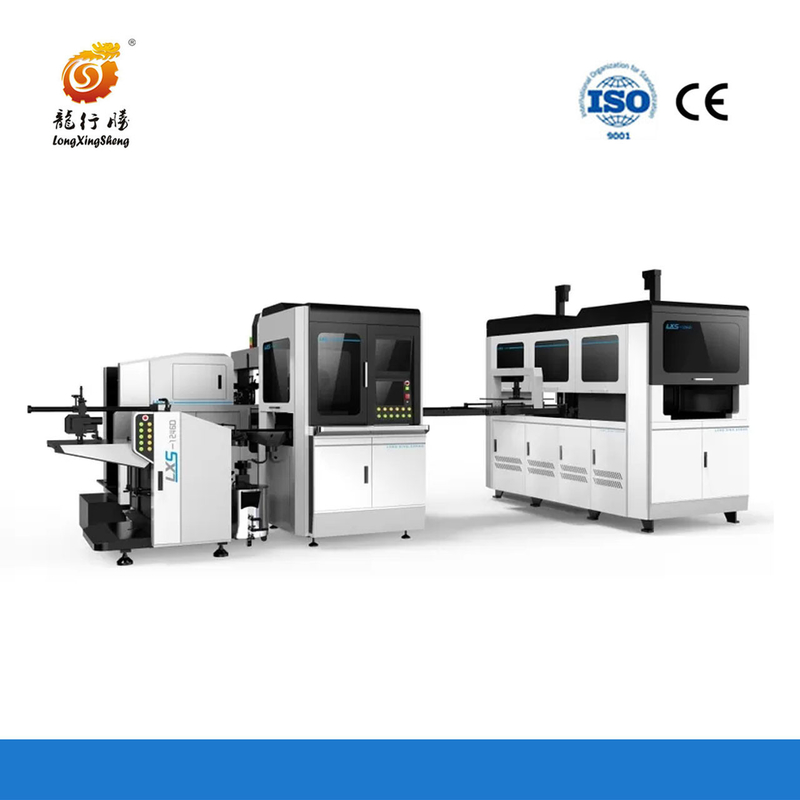

1246D Automatic High Speed Smart Rigid Box Making Machine
Double 10 Mega Pixel Cameras from Germany.
Robotic arm accuracy is 0.1mm.
Visual positioning system don't need to move camera.
Integration tape feeding device, avoid tape blocking.
Box picking up system, avoid paper scratching.



Main Features

◆ Double forming stations
◆ Yamaha Robotic arm
◆ Suitable for all kinds of rigid boxes
◆ New circulating temperature control gluing system
◆ Troubleshooting
◆ Precise four-corner box holding robot
◆ Automatic suction, paper and cardboard feeding
◆ Precise sliding table to finish edge folding, the length of folding can be adjusted
◆ High-precision cam feeding
◆ Built-in constant temperature system (optional)
◆ Panasonic servo control system
◆ HD positioning camera
◆ Visual positioning system and robot grasping (positioning error is less than 0.1mm)




Machine Parameter

ITEM
DATA
ITEM

Paper size (max)
L800 * W600mm
Edge folding size
10-90mm
Paper size (min)
L135 * W100mm
Tuin in depth
15-80mm
Cardboard size (max)
L760 * W560mm
Air pressure
40L/min 0.8MPa
Cardboard size (min)
L120 * W100mm
Working speed
15-45 pcs/min
Box size (max)
L600 * W400 * H120mm
Motor power
28kw/380v 3 phase
Box size (min)
L80 * W65 * H15mm
Heating power
8kw
Paper thickness
100-350g/㎡
Machine weight
6500kg
Cardboard thickness
0.8-3mm
Machine dimension
L6600 * W4200 * H3000mm

High Speed Smart Carton Box Stretch Wrapping Machine For Phone Cover Making 0                                                                Machine setting time: Short in 45 minutes


High Speed Smart Carton Box Stretch Wrapping Machine For Phone Cover Making 1
Intelligent setting page

Installation
High Speed Smart Carton Box Stretch Wrapping Machine For Phone Cover Making 2
High Speed Smart Carton Box Stretch Wrapping Machine For Phone Cover Making 3
Packaging & delivery
High Speed Smart Carton Box Stretch Wrapping Machine For Phone Cover Making 4
High Speed Smart Carton Box Stretch Wrapping Machine For Phone Cover Making 5

FAQ
Q1. What is LXS company machine warranty?
A1. 1 year warranty including free machine parts replacement ( consumables are notincluded).

Q2. Does your machine with CE certificate?
A2. Yes.We have CE ,ISO9001 .

Q3. What is the production time while placing order?
A3. Within 7-30 workdays.
