Product Details:
|
| Type: | Box Making Machine | Applicable Industries: | Manufacturing ,Machinery Repair Shops, Food & Beverage Factory, Box Packaging |
|---|---|---|---|
| Warranty Of Core Components: | 1 Year | Core Components: | PLC |
| Condition: | New | Application: | APPAREL, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles |
| Packaging Material: | Wood Case | Automatic Grade: | Semi-automatic |
| Dimension(L*W*H): | 1220*960*2100 Mm | Weight: | 980 Kgs |
| Warranty: | 1Year | Key Selling Points: | High-speed |
| Max Box Size: | 430*350*120 Mm | Min Box Size: | 80*65*10 Mm |
| Air Supply: | 0.6Mpa | Working Speed: | ≤22pcs/min |
| Power Supply: | 2.5kw/220v | Machine Dimension: | 1220*960*2100 Mm |
| Machine Weight: | 980 Kg | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | Turkey, United Kingdom, Italy, France, Germany, India, Russia, Japan, Malaysia, Australia | Port: | Shenzhen |
| Highlight: | 22pcs/min Rigid Box Making Machine,Rigid Box Making Machine 2.5kw,PLC Rigid Box Maker |
||

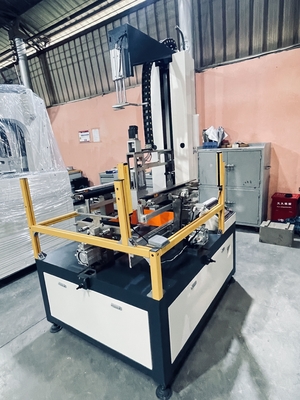

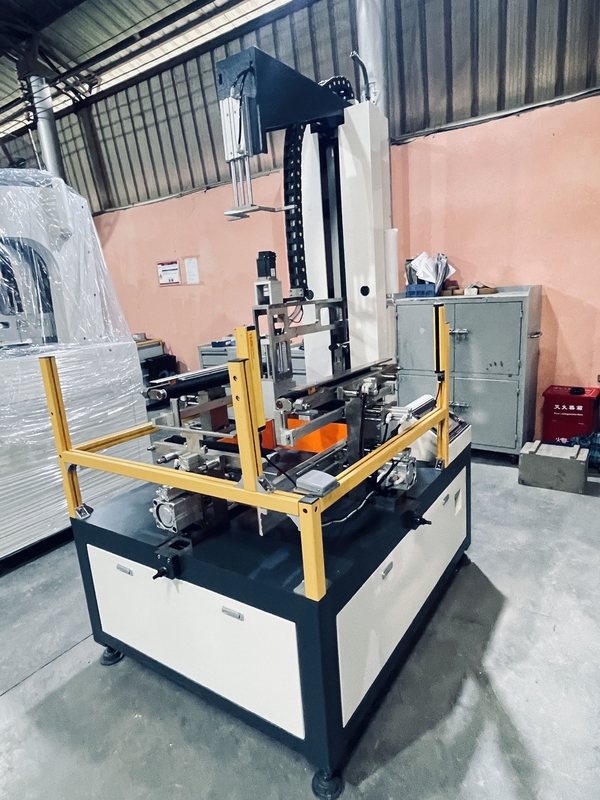

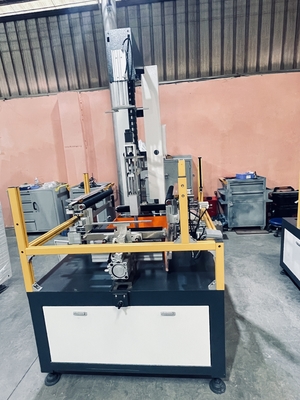

LS-F6 Rigid box making machine is applied for wrapping the glued paper in the pasted box. It can finished side wrapping, edge folding (≤50 mm), tucking in and air pressing at one time.
It has 4 modes:Fold in on one side, fold in on opposite sides, fold on all four sides at the same time, first on opposite sides and then on one side. It has applied Pneumatic and Compressor air to driving the machine running.
This machine is setting by manual, which will cost around 15 minutes. It is an ideal equipment for customer which has different.quantity orders. Especially the customer seeking for higher quality products.
Max wrapping height is 65mm
65-80mm wrapping height require modified
Require modified mold, tucking in blade and air pressing board. Shortest height side require ≥ 10mm
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* One year overseas warranty.
|
Packaging
|
|
|
|
Size
|
1450(L) * 1100 (W) * 2200 (D)
|
|
|
Weight
|
1.2 T
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
