Product Details:
|
| Product Name: | LS-1246G Automatic Multi-Functional Rigid Box Machine For Box & Hardcover Making Factory | Max Paper Size: | L800*W600mm |
|---|---|---|---|
| Min Paper Size: | L135*W100mm | Max Cardboard Size: | L760*W560mm |
| Min Cardboard Size: | L120*W100mm | Box Length: | 100-600mm |
| Box Width: | 60-400mm | Box Height: | 15-130mm |
| Working Speed: | 15-25pcs/min | Feature: | Making Rigid Box And Hardcover |
| Highlight: | Multifunctional Rigid Box Machine,Hardcover Rigid Box Machine,60mm Rigid Box Making Machine |
||

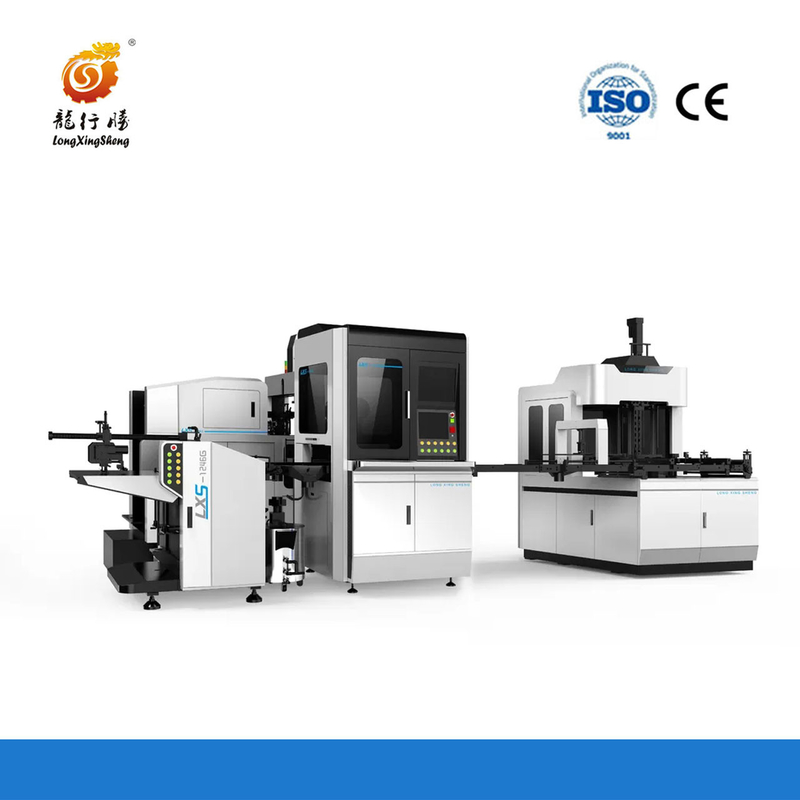

LS-1246G fully automatic multifunctional hard box machine is convenient for box making and hardcover(book cover) factories. It includes box corner pasting, paper bonding, box and box positioning, box packing and pressing once.
This machine adopts visual positioning, simple positioning and high precision. This machine is suitable for orders above 1000pcs. It works in a wide range. The maximum box length is 600mm, the maximum box height is 400mm, and the maximum height is 130mm. LS-1246G is equipped with paper feeding device, which can position hardcover books. The maximum number of feeding cardboard sheets is five.
The LS-1246G is best choice for rigid box, book-type box,cardboard box, cosmetic box, ring box, shoe box, lip and bottom box, jewelrry box, phone box prodcution.
| Type | LS-1246G |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-130mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-25 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3500kg |
| Machine dimension | L6500*W3800*H3000mm |
