Product Details:
|
| Type: | Booking Machine | Applicable Industries:: | Advertising Company, |
|---|---|---|---|
| Condition: | New | Application: | Chemical |
| Motor Power: | 13kw/380v 3phase | Air Pressure: | 40L/min 0.8MPa |
| Highlight: | Fully Automatic Rigid Box Wrapping Machine,3phase Rigid Box Making Machine,Cardboard Rigid Box Wrapping Machine |
||
| Type | LS-1246D |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-120mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-45 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 4300kg |
| Machine dimension | L6600*W4200*H3000mm |

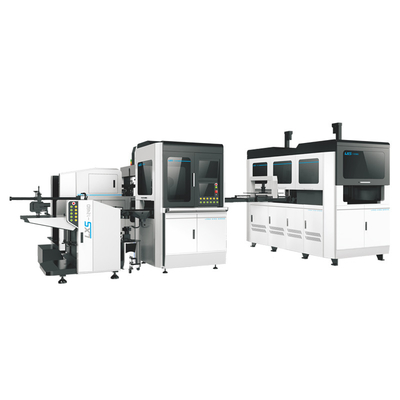

Fully automatic rigid box making machine is the best equipment to make top grade rigid box. Reasonable design and credible performance. It consists of feeder part, corner pasting part, gluing part, positioning part and wrapping part.
This machine adopts advanced programmable logic controller, photoelectric tracking system, precise hydraulic and pneumatic deviation correction system, convenient touch screen human-machine interface (Chinese and English operation panel), etc., to realize automatic cardboard feeding, automatic paper feeding, four-corner bonding, upper Gluing, automatic conveying, positioning, pressing, automatic box picking, wrapping, etc. are all completed in one go, realizing high-speed production.
Price vary with raw material cost, please contact our sales for latest prices.
