Product Details:
|
| Product Name: | Rigid Box Making Machine Paper Gluer Positioning Box Making For Shoe 、Phone&Wine Box | Dimension(L*W*H):: | 5983*3188*2116 |
|---|---|---|---|
| Automatic Grade: | Rigid Box Making Machine | Condition: | New |
| Weight: | 2110kg | Application Area: | Gift Box Gluing Machine |
| Highlight: | Paper Gluer Rigid Box Making Machine,40pcs/min Box Making Machine,350g/m2 Box Making Machine |
||

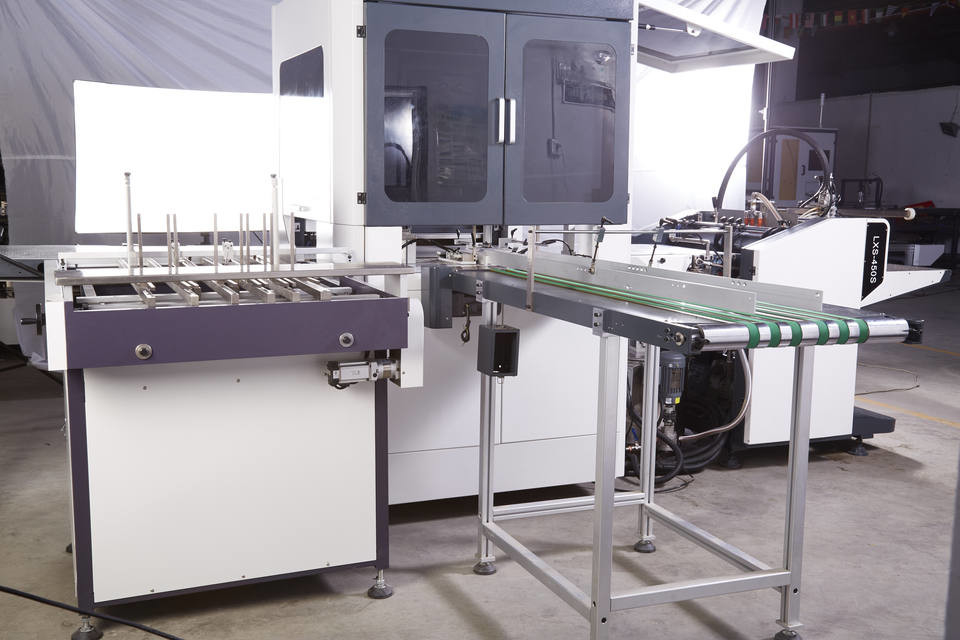

Rigid Box Making Machine Paper Gluer Positioning Box Making For Shoe ,Phone & Wine Box
Introduction:
LS-450plusVisual box positioning machine is an automatic production equipment integrating gluing and positioning.Can add forming station to finish box wrapping.
It has 3 main steps:
| Type | LS-450plus |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size | L600*W400*H120mm |
| Min box size | L80*W65*H15mm |
| Book cover (Max) | L750*W450mm |
| Book cover (Min) | L150*W100mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 7.5kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-45 sheets/min |
| Machine dimension | L5980*W3180*H2100mm |
| Weight of machine | 2100kg |
Company profile:
Dongguan Longxingjian Intelligent Equipment Co.,Ltd
We are located in world manufacturer city----Dongguan City, Guangdong Province. The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd.
We have independent R&D department. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery's research, development, manufacturing and selling for more than 15 years. Grooving machine series and rigid box forming series are our main products.
Our service:
INSTALLATION SERVICES
Installation Services are available with all Our machines. We dispatch technician to customer's factory for installation and
preoperation of machines. ( Customers only need to pay the airfare and hotel )
2.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
