Product Details:
|
| Type: | Booking Machine | Applicable Industries: | Advertising Company |
|---|---|---|---|
| Condition: | New | Application:: | Chemical |
| Motor Power: | 13kw/380v 3phase | Air Pressure: | 40L/min 0.8MPa |
| Highlight: | Booking Rigid Box Making Machine,13kw Rigid Box Wrapping Machine,380v Rigid Box Forming Machine |
||

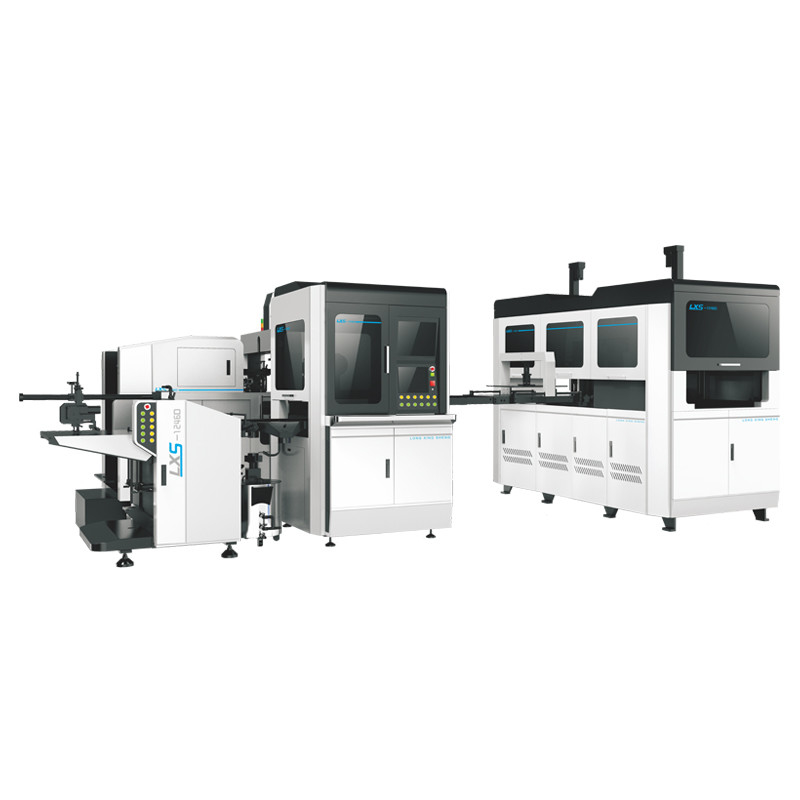

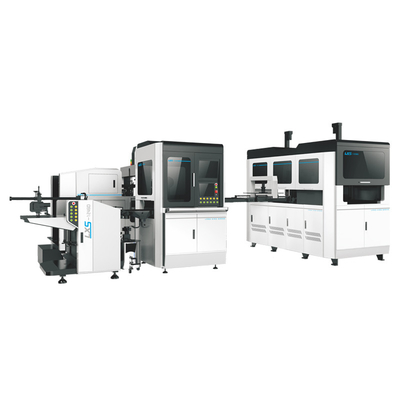

LS-1246G Rigid box packaging machine can be standardized in actual production. The advantage of standardization is that it can replace labor through full automation. Compared with other manual box types, the production of Tiandi cover packaging boxes is faster, which is convenient for gift box manufacturers to produce and mechanize. The efficiency is higher than that of manpower, strictly control product quality, and form a unified standard
| Type | LS-1246D |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-120mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-45 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 4300kg |
| Machine dimension | L6600*W4200*H3000mm |
This machine adopts advanced programmable logic controller, photoelectric tracking system, precise hydraulic and pneumatic deviation correction system, convenient touch screen human-machine interface (Chinese and English operation panel), etc., to realize automatic cardboard feeding, automatic paper feeding, four-corner bonding, upper Gluing, automatic conveying, positioning, pressing, automatic box picking, wrapping, etc. are all completed in one go, realizing high-speed production.
Price vary with raw material cost, please contact our sales for latest prices.
1,The machine is completed by a servo motor, PLC programmable control.
2,The machine commissioning completed by the HMI selective, simple and easy to adjust.
3,The machine control accessories for all full use of international high-end brands, the failure of low and high accuracy.
4,The machine with a fault alarm functions, such as and part of the failure, the alarm will whistle, fault will be displayed on the screen.
5,The machine can touch with emergency stop switch, if an emergency press stops automatically.
