Product Details:
|
| Type:: | Booking Machine | Applicable Industries:: | Advertising Company, |
|---|---|---|---|
| Condition:: | New | Application:: | Chemical |
| Motor Power: | 13kw/380v 3phase | Air Pressure: | 40L/min 0.8MPa |
| Feature: | Double Box Forming Parts |
| Type | LS-1246D |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-120mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-45 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 4300kg |
| Machine dimension | L6600*W4200*H3000mm |

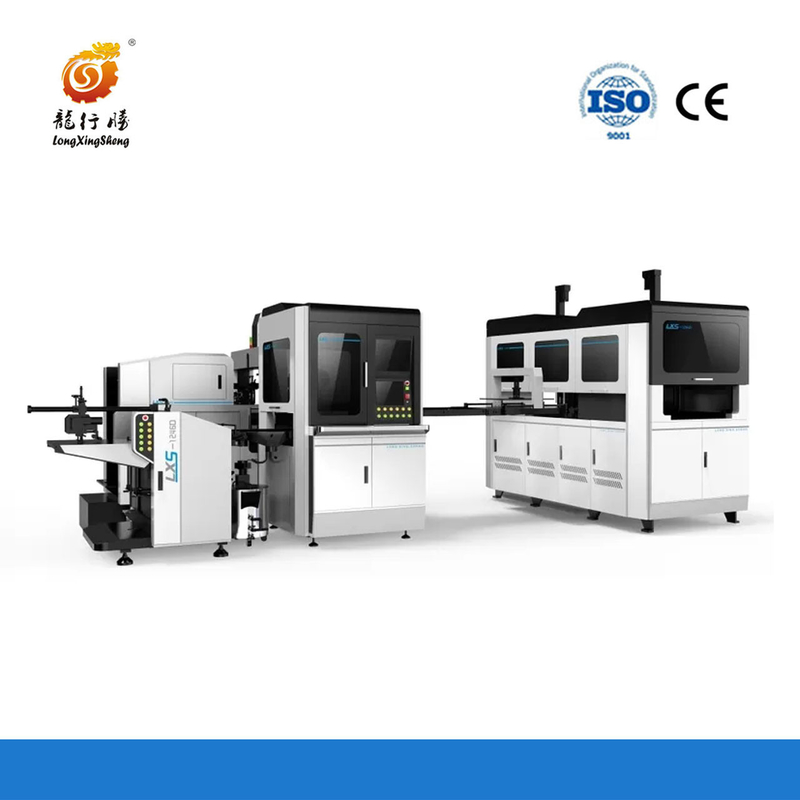

The Fully Automated Intelligent Rigid Box Making Machine. Designed with precision and efficiency in mind, this machine is perfect for businesses looking to streamline their packaging process.One of the standout features of this machine is its ability to accommodate a wide range of box sizes. From the largest box measuring 600*400*120mm to the smallest at 80*65*15mm, this machine can handle it all. No more worrying about limitations on box size, as our machine ensures versatility and adaptability.
In terms of speed, our Fully Automated Intelligent Rigid Box Making Machine does not disappoint. With a production rate of 15-45 boxes per minute, you can significantly increase your output without compromising on quality. Efficiency is key, and this machine delivers.
Price vary with raw material cost, please contact our sales for latest prices.
