Product Details:
|
| Power:: | 14kw | Shipping:: | Air Freight |
|---|---|---|---|
| Box Width: | 65-400mm | Service:: | 1 Year For Machinery Warranty |
| Power Supply:: | 14kw/380v 3phase | Air Supply:: | 40L/min 0.8Mpa |

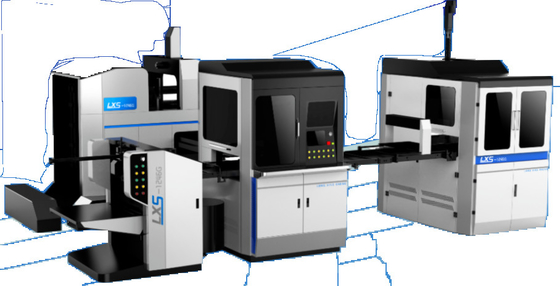

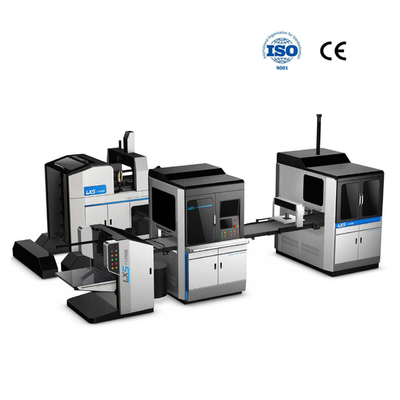

1246B is designed based on our 16 years of rigid box machine manufacturing experience. Compared with other models on the market, 1246B has higher speed and maximum size range of 400*600*120mm. With stable performance, 15-25 boxes can be produced per minute. Its automatic setting function greatly simplifies the box making process for customers. LS-1246B is the best choice for heaven and earth boxes, cardboard boxes, cosmetic boxes, ring boxes, shoe boxes, and lip boxes. Production of bottom boxes, jewelry boxes, and mobile phone boxes.
| Type | LS-1246B |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-120mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-25 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3800kg |
| Machine dimension | L6600*W3800*H3000mm |
First of all, our machines adopt advanced automation technology and are able to automate the entire hard box making process. From cardboard cutting to gluing, to folding and assembly, every step is done with precision by machine. This not only greatly improves production efficiency, but also eliminates human errors and ensures a high degree of accuracy and consistency in the production process.
Secondly, our box making machine is equipped with an intelligent control system, which is easy and convenient to operate. You only need to easily set the machine parameters and adjust them according to the size and requirements of the gift box to realize customized production. Whether it is small batch production or large-scale manufacturing, our machines can meet your needs.
Machine setting time: Short in 45 minutesContact Person: Ms. Lyla Lyu
