Product Details:
|
| Product Name: | Automatic Multi-functional Rigid Box Making Machine For Box And Hardcover Making Visual Positioning | Max Paper Size: | L800*W600mm |
|---|---|---|---|
| Min Paper Size: | L135*W100mm | Max Cardboard Size: | L760*W560mm |
| Min Cardboard Size: | L120*W100mm | Box Length: | 100-600mm |
| Box Width: | 60-400mm | Box Height: | 15-130mm |
| Working Speed: | 15-25 Pcs/min | Weight: | 3500Kg |
LS-1246G Automatic multi-functional rigid box machine is an convenient for factory has box and hardcover orders. It including the box corner pasting, paper gluing, box&case positioning, box wraping and pressing at one time.
This machine has applied visual positioning for easy and high accurate positioning. This machine are suitable for the orders more than 1000 pcs. It has a big wide size working range. Max box length is 600mm, max box height is 400mm, max height is 130mm. LS-1246G are OK to positioning the hardcover as it equipped with case feeding device. Max feeding cardboard pcs are five pcs.

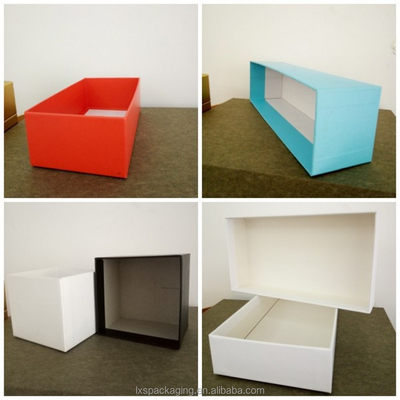

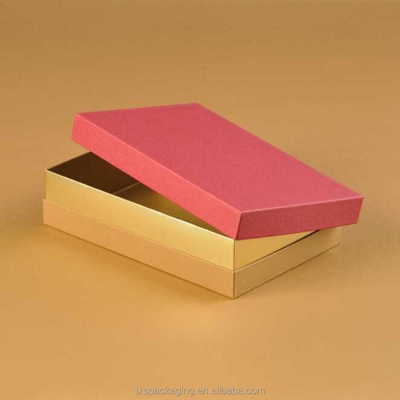

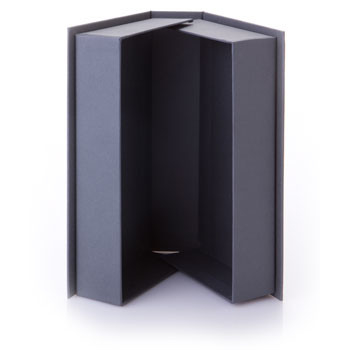

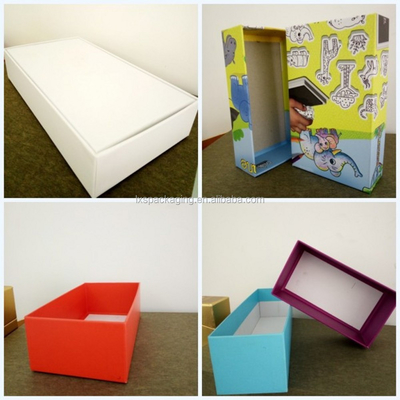

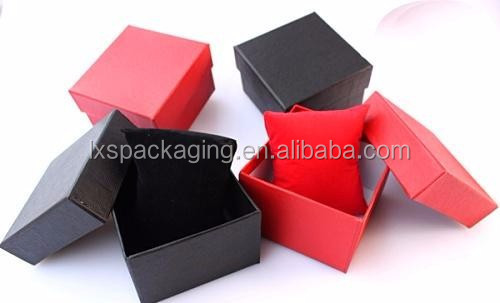

The LS-1246G is best choice for rigid box, book-type box,cardboard box, cosmetic box, ring box, shoe box, lip and bottom box, jewelrry box, phone box prodcution.
| Type | LS-1246G |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-130mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-25 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3500kg |
| Machine dimension | L6500*W3800*H3000mm |
Features:
The Longxing Sheng intelligent rigid box making machine is designed with advanced technology to produce high-quality rigid boxes efficiently. The machine is equipped with a range of features that make it stand out from other packaging machines in the market. Some of the features of this machine include:
Superior Precision: Our machines ensure precision and consistency in the box making process, resulting in perfect results every time. Say goodbye to uneven folds and imperfect surfaces.
Versatile box sizes: With adjustable parameters, our machines adapt to a variety of box sizes, making it easy to create a variety of packaging solutions.
Fully automated process: From cardboard feeding to box forming and gluing, our machines reduce human intervention throughout the entire production process. Improve efficiency and reduce labor costs.
High-quality Construction: Built with high-quality materials and robust engineering, our machine guarantees durability and long-lasting performance. It undergoes rigorous testing and quality control measures to ensure reliability and stability during extended production runs. You can rely on our machine to consistently deliver high-quality food boxes.
Customizable Options: Our machine offers customizable options to meet your specific requirements. You can easily adjust parameters such as box dimensions, glue application, and folding techniques for tailored results. This flexibility ensures that your food boxes not only provide excellent protection but also reflect your brand's unique style and identity.
Cost-effective Solution: By automating the box-making process, our machine helps reduce labor costs and minimize material waste. It improves production efficiency, enabling you to optimize resource allocation and achieve cost savings. Whether you have high-volume or low-volume production needs, our machine offers an economical solution that maximizes your return on investment.
