Product Details:
|
| Product Name: | LS-1246G Automatic Multi-Functional Rigid Box Machine For Box & Hardcover Maker Factory | Max Paper Size: | L800*W600mm |
|---|---|---|---|
| Min Paper Size: | L135*W100mm | Max Cardboard Size: | L760*W560mm |
| Min Cardboard Size: | L120*W100mm | Box Length: | 100-600mm |
| Box Width: | 60-400mm | Box Height: | 15-130mm |
| Working Speed: | 15-25pcs/min | Feature: | Making Rigid Box And Hardcover |

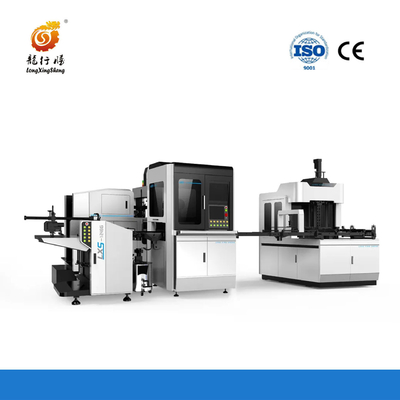

LS-1246G Automatic rigid box making mahchine is convenient for box making and hardcover(book cover) making manufacturers & supplies. This machine has four main steps:includes box corner pasting, paper feeding&gluing, paper and box positioning, box packing and pressing once.
This machine adopts visual positioning, simple positioning and high precision to ensure high accuracy box making. This machine is suitable for orders above 1000pcs. It works in a wide range. The maximum box length is 600mm, the maximum box height is 400mm, and the maximum height is 130mm. LS-1246G is equipped with paper feeding device, which can position hardcover books. The maximum number of feeding cardboard sheets is five.
| Type | LS-1246G |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-130mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-25 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3500kg |
| Machine dimension | L6500*W3800*H3000mm |
