Product Details:
|
| Type:: | Booking Machine | Applicable Industries:: | Advertising Company, |
|---|---|---|---|
| Condition:: | New | Application:: | Chemical |
| Motor Power: | 13kw/380v 3phase | Air Pressure: | 40L/min 0.8MPa |

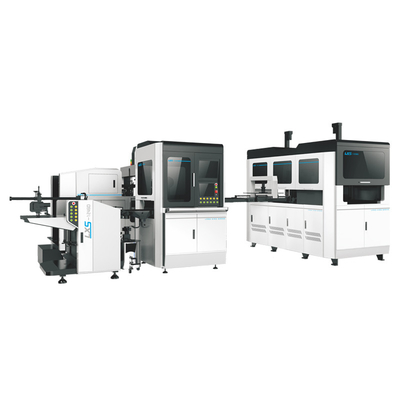

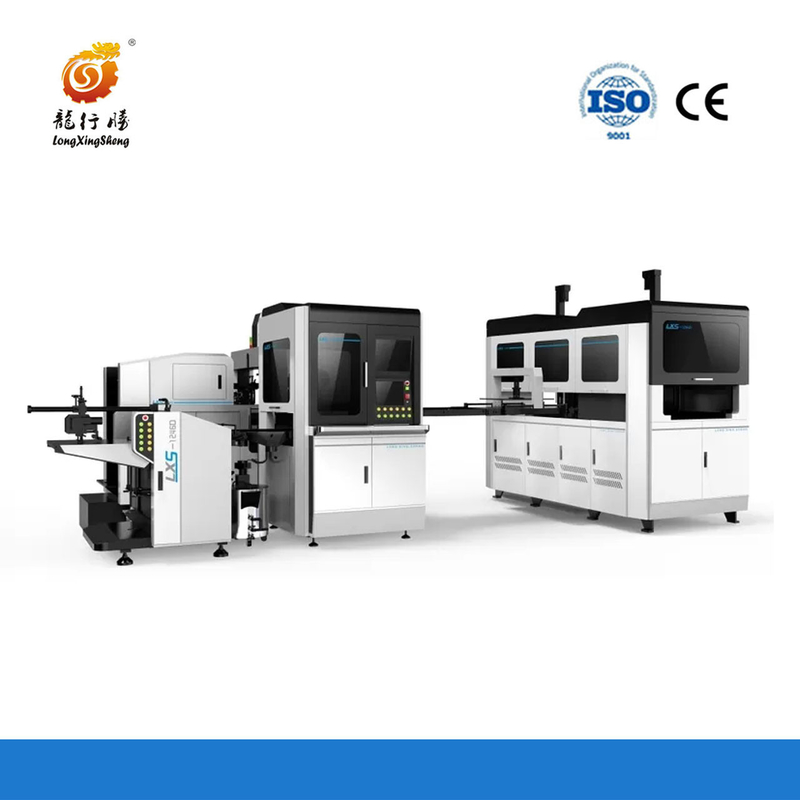

LS-1246D are the latest rigid box making machine on the market for high speed production.
The LS-1246D has a good appearance in the rigid box production with high speed. To ensure the best appearance of box, it will equipped with an automatic air pressing machine to combine with its high speed. It is good helper to customer, it can running in high speed 25-45 pcs/min, middle speed 15-25 pcs/min.

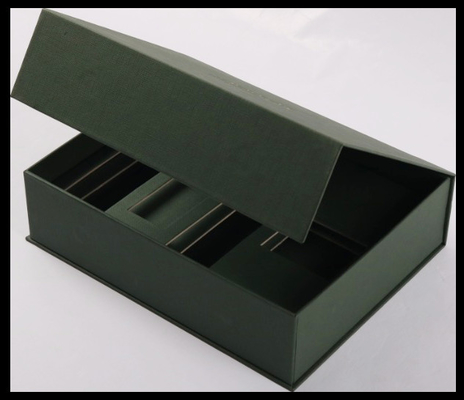

The automated multi-functional intelligent rigid box box making machine is an advanced equipment that can be used to make various types of gift boxes, including rigid boxes, bevel boxes, plastic boxes, CD boxes, etc.
This type of machine usually has the following features and functions:
Automated operation: It can automatically complete the box production process, reduce manual operations and improve production efficiency.
Versatility: This machine has the ability to make different types of boxes, such as rigid boxes, bevel boxes, plastic boxes and CD boxes, etc. It allows the operator to input the size of the box to be produced, and then the computer and servo system can automatically calculate and complete the production of the box.
| Type | LS-1246D |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-120mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-45 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 4300kg |
| Machine dimension | L6600*W4200*H3000mm |
Machine setting time: Short in 45 minutes
The Automatic Intelligent Rigid Box Lamination Machine is equipped with features that enable it to handle different types of paper materials effectively. Here are some additional details:
Paper Thickness Compatibility: The machine is designed to accommodate a wide range of paper thicknesses. Whether you are working with thin paper or thicker cardboard, the machine's adjustable settings allow for precise control over the lamination process.
Paper Quality and Finish: The machine can handle various paper qualities, including coated, uncoated, textured, and specialty papers. It is capable of laminating these different paper surfaces while maintaining the integrity and appearance of the final product.
Adhesive Selection: The machine offers flexibility in adhesive selection, allowing you to choose the most suitable adhesive for your specific paper material. Different adhesives can be used to achieve optimal bonding results depending on the characteristics of the paper, ensuring strong and durable lamination.
Customizable Settings: With its intelligent control system, the machine can be programmed to adjust settings based on the specific paper material being used. This customization ensures precise temperature, pressure, and lamination duration, optimizing the bonding process for different paper types.
Quality Assurance: The machine is built to deliver high-quality lamination results consistently. It minimizes the risk of wrinkles, bubbles, or other imperfections that could affect the appearance and structural integrity of the finished boxes. This ensures that the final products meet the desired standards of quality.
Upgrade your box production capabilities with the 1246D Fully Automatic Rigid Box Making Machine. Experience unmatched precision, efficiency, and quality that will impress your clients and elevate your brand reputation.
Invest in our advanced machines to open up endless possibilities for your packaging business. Contact us today to learn more about the 1246D fully automatic overhead lid carton making machine and how it can transform your production line.
