Product Details:
|
| Paper Width: | LS-650A | Paper Thickness: | 80-250g |
|---|---|---|---|
| Glue Speed: | 7-40pcs/min | Voltage Supply: | 380V |
| Motor Power: | 7.45KW | Machine Dimension: | L7600*W1650*H1100mm |
| Machine Weight: | 1096kg |

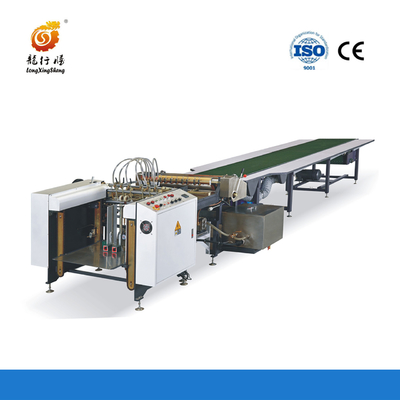

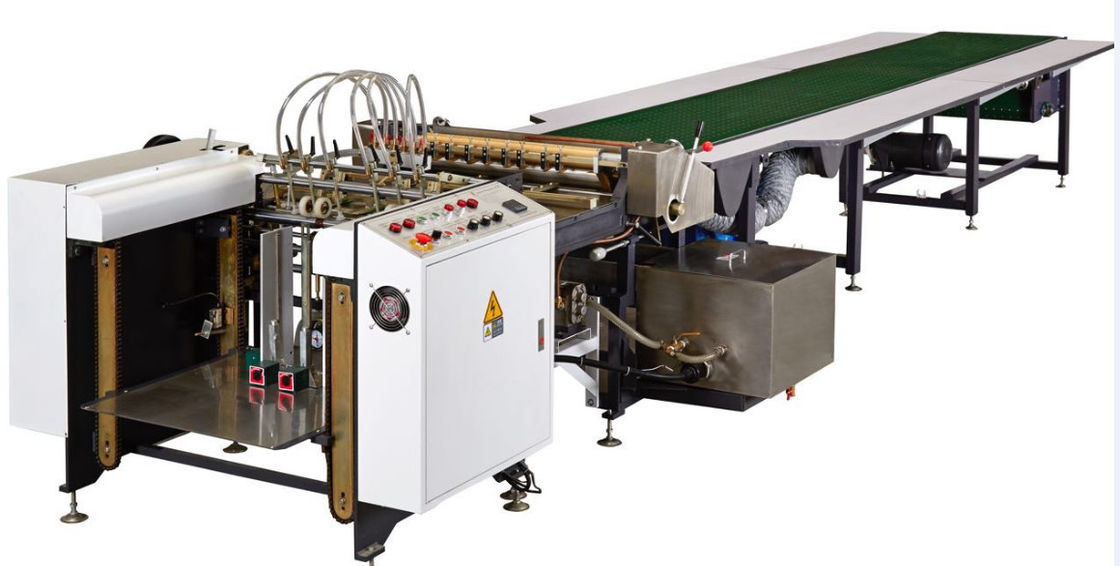

Automatic Hot Melt Glue Cover Paper Gluing Machine With High Accuracy
Applied products: file boxes, clothing box, shoes box, hardcover boxes and other products. This machine has high efficiency, adaptability, hot melt and adhesive, glue, latex can be used. Variable speed, no wear , no deformation, feeding, high precision.
This machine has an indirect heating and temperature control system, which can be applied to the place where the working environment is low. The system models can be assembled into various forms of assembly line according to the needs of the product.
| Paper width |
W80-600mm |
| Paper thickness | 80-250g |
| Glue speed | 7-40pcs/min |
| Voltage supply | 380v |
| Motor power | 7.45KW |

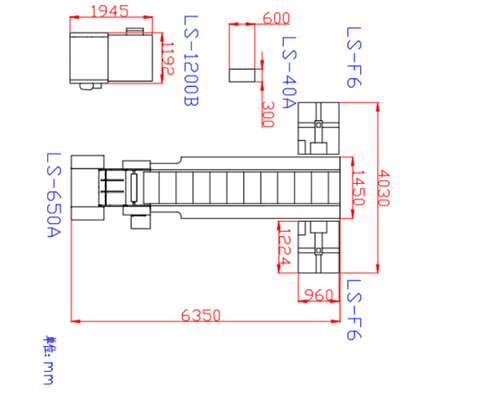

| Machine dimension | L7600*W1650*H1100mm |
| Machine weight | 1096kg |
Use production:
Fo ders, file boxes, clothing box, shoes box, hardcover cover and other products. This machine has hogh efficiency, adaptability, hot melt adhesive, glue, latex can be use. Variable speed, no wear, no deformation, feeding, high precision.
This machine has an indirect heating and temperature control system, which can be applied to the place where theworking enviroment is low. The system models can be assembled into various forms of assembly line according to the needs of the product.
Feeder paper feeding: The machine uses feeder servo to feed tissue paper into the roller for bonding glue
Glue type: Automatic glue applicators can handle different types of adhesives, including hot melt glue, water-based glue, solvent-based glue and UV-curable glue. The specific type of glue a machine can handle depends on its design and functionality.
Control System: These machines have advanced control systems that allow for precise and consistent glue application. Control systems can include programmable settings for glue volume, speed, temperature (for hot melt glue) and pattern customization.
1. Feeder paste machine mainly adopts vacuum suction and blowing at the front end of the paper to suck and transport the paper, and the conveying is stable and accurate;
2. The main machine is frequency-controlled and speed-regulated, equipped with automatic heating and constant temperature system with timing start;
3. The conveyor belt is equipped with a strong suction device to avoid bending, deformation and displacement of the paper after being glued;
4. Compatible with hot melt adhesive and cold adhesive, the glue is applied evenly without wrinkling, and there is less waste in recycling, which can effectively improve production efficiency and save costs.
