Product Details:
|
| Max Box Size: | L600*W400*H120mm | Min Box Size: | L80*W65*H15mm |
|---|---|---|---|
| Max Speed: | 20-25 Pcs/min | Max Paper Size: | L800*W600mm |
| Max Cardboard Size: | L760*W560mm |
The carton positioned by the positioning machine is more firmly adhered to the carton by the box holding mechanism, and the carton is less likely to be peeled off from the carton during the box or box forming section.

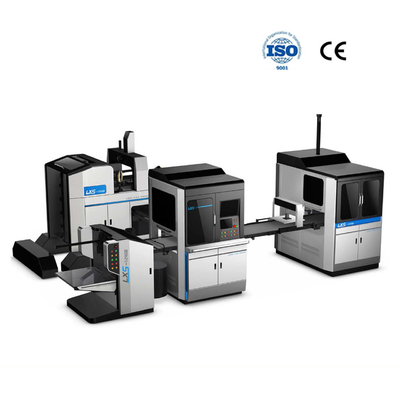

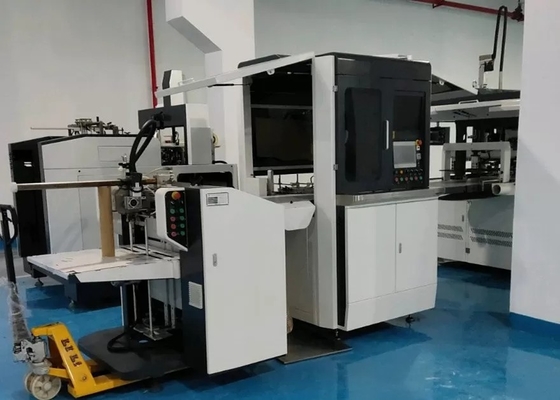

LS-1246B fully automatic intelligent top and bottom lid carton making machine is an ideal machine for customers with fluctuating orders. Complete the box gluing angle, paper feeding and gluing, box feeding positioning, box packaging, air pressure, etc. all at once.
LS-1246B is ideal for manufacturing top and bottom boxes, gift boxes, paper boxes, cosmetic boxes, ring boxes, shoe boxes, lip boxes, jewelry boxes, and mobile phone boxes.
| Type | LS-1246B |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-120mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-25 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3800kg |
| Machine dimension | L6600*W3800*H3000mm |
Quick work setup
No need to replace pneumatic plates
make a luxury box
Special pick and pack system
Supports order changes
For example, if you order 5,000 pieces
Major features:
1. Automatic configuration function.
2. The positioning part has a storage function and is easy to adjust.
3. The boxing system prevents the cover paper from being scratched, making it suitable for manufacturing high-quality boxes.
Prices vary depending on raw material costs, so please contact our sales staff for the latest prices.
