Product Details:
|
| Paper Size(max): | L800*W600mm | Paper Size (min): | L180*W100mm |
|---|---|---|---|
| Box Size(max): | L600*W400*H120mm | Box Size(min): | L80*W65*H15mm |
| Paper Thickness: | 100-350g/㎡ | Cardboard Thickness: | 0.5-3mm |
| Working Speed: | ≤45sheets/min | Positioning Accuracy: | ≤0.1mm |
| Motor Power: | 7.5 Kw/380v 3 Phase |

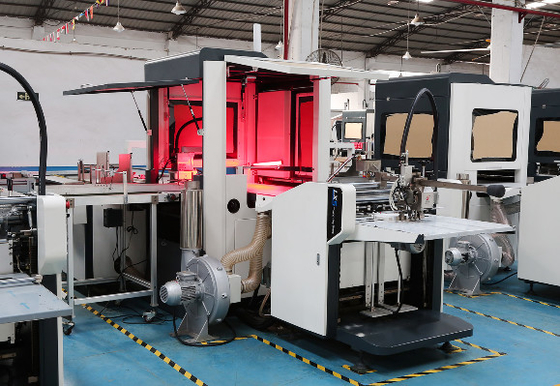

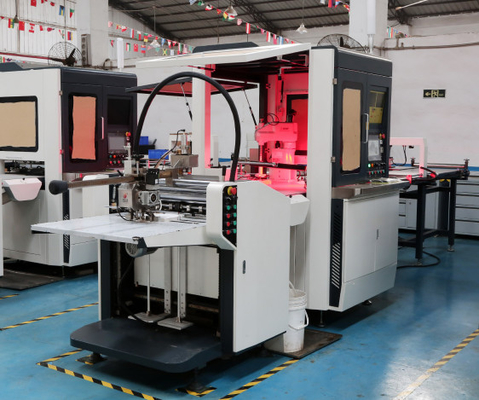

LS-450 PLUS Automatic Hardcover Rigid Box Visual Positioning Machine With 45 Pcs/Min 7 Min Mode Changing
Machine introduction
I am pleased to introduce to you the LS-450 PLUS fully automatic hardcover box vision positioning machine. LS-450 PLUS is a high-efficiency visual positioning equipment with a production speed of 45 pieces per minute and can complete the mold change operation within 7 minutes. The following is a detailed introduction to the device:
Efficient production capacity: LS-450 PLUS adopts advanced automation technology and has a production speed of 45 pieces per minute. This enables it to complete tasks quickly and reliably in high-volume production environments, improving production efficiency.
| Machine model | LS-450 Plus |
| Paper size(max) | L800*W600mm |
| paper size (min) | L180*W100mm |
| Box size(max) | L600*W400*H120mm |
| Box size(min) | L80*W65*H15mm |
| Paper thickness | 100-350g/㎡ |
| Cardboard thickness | 0.5-3mm |
| Working speed | ≤45sheets/min |
| Positioning accuracy | ≤0.1mm |
| Motor power | 7.5 kw/380v 3 phase |
| Heating power | 8 kw |
| Air pressure | 10L/min 0.6MPa |
| Weight of machine | 2100kg |
| Machine dimension | L5980*W3180*H2100mm |
Quick mold change function: This equipment is designed with a quick mold change system, allowing the mold change operation to be completed within 7 minutes. Such a quick mold change function enables the production line to quickly adjust to the needs of different product specifications and sizes, improving production flexibility.
Visual positioning technology: LS-450 PLUS uses advanced visual positioning technology to accurately detect and position sky-and-ground box products. Using computer vision algorithms, the device can identify and track specific features of the product, ensuring correct positioning and precise operation.
Hardcover sky and earth box function: LS-450 PLUS is specially designed for hardcover sky and earth box products, and can efficiently complete the assembly and positioning of the sky and earth box. This type of boxes are usually widely used in gift packaging, high-end product packaging, etc., because they can provide a more exquisite and high-end appearance.
Reliability and Stability: LS-450 PLUS focuses on the reliability and stability of the equipment. It uses high-quality components and advanced control systems to ensure stable operation and long-term reliability of the equipment.
Easy to operate: The device adopts a user-friendly interface and operation control panel, allowing operators to easily set up and monitor the operating status of the device. In addition, the device also provides fault diagnosis and alarm functions to help solve potential problems in a timely manner.
Safety guarantee: LS-450 PLUS equipment has safety guarantee measures, including safety sensors, emergency stop buttons and protective covers, to ensure the safety of operators.
Our advantages
Certificates: ISO9001-2008, Quality management system, CE certificate.
Mission & Vision: Provide smart modular for packaging.
Products scope: Automatic rigid box making machine. V grooving machine. Visual positioning machine. Rigid box former. Corner
pasting machine. Gluing machine and other machinery.
Market positioning: Middle and high-end market
Our Services
1. Professional QC and QA team to make sure all products qualified before shipping.
2. Competitive price
3 .Standard package to ensure the safe transportation.
4. Professional service
Contact Person: Ms. Lyla Lyu
Tel: +86 13829162915
