Product Details:
|
| Paper Size(max): | L800*W600mm | Paper Size (min): | L135*W100mm |
|---|---|---|---|
| Box Size(length ): | L 45-350mm | Box Size(width): | W 45-250mm |
| Box Size(height): | H 12-100mm | Max Board Size: | L760*W560mm |
| Min Board Size: | L120*W100mm | Paper Thickness: | 80-350g/㎡ |
| Heating Power: | 8 Kw | Air Pressure: | 40L/min 0.8Mpa |

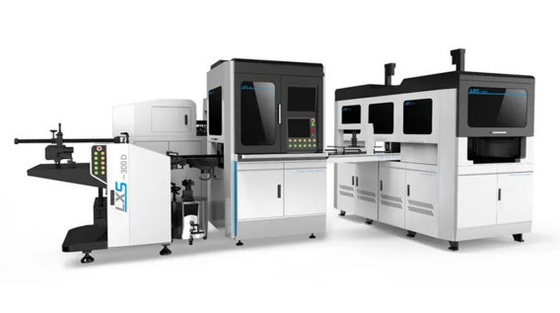

Fully Automatic Ring Watch Mobile Phone Gift Photo Frame Rigid Box Forming Machine 45 Pc/Min
Machine introduction
Fully automatic rigid box making machine is the best equipment to make top grade rigid box. Reasonable design and credible performance. It consists of feeder part, corner pasting part, gluing part, positioning part and wrapping part.
300D is designed based on our 12 years’ experience of rigid box machine manufacturing. Compared to other models on the market, 1246D has higher speed and biggest size range up to 350*250*100mm. Under stable performance it can produce 40-45 boxes per min.It’s automatic setting feature greatly simplify box making for our customers.The LS-1246D is best choice for rigid box, cardboard box, cosmetic box, ring box, shoe box, lip and bottom box, jewelrry box, phone box prodcution.
| Machine model | LS-300D |
| Paper size(max) | L800*W600mm |
| paper size (min) | L135*W100mm |
| Box size(length ) | L 45-350mm |
| Box size(width) | W 45-250mm |
| Box size(height) | H 12-100mm |
| Max board size | L760*W560mm |
| Min board size | L120*W100mm |
| Paper thickness | 80-350g/㎡ |
| Working speed | 15-40pcs/min |
| Positioning accuracy | ±0.1 mm |
| Motor power | 16kw/380v 3 phase |
| Heating power | 8 kw |
| Air pressure | 40L/min 0.8Mpa |
| Weight of machine | 4000kg |
| Machine dimension | L6400*W4000*H3000mm |
As dual forming station can only running one to save energy. It also has degined for a wide range box production with intelligent setting. The max box length is 600mm, max width is 400mm, Max height is 120mm. Whole line has applied the visual positioning technology in rigid box making. Ensure its high working speed and accuracy, Whole working speed can be adjusted in one button. The intelligent setting has ensured it can change new size in the shortest time.
LS-300D including the box corner pasting:can make the cutting cardboard and the grooving cardboard, paper gluing:has avoid glue system and the gluing roller clear system
Box positioning:has two camara to send the signal to make the smaller or bigger box,the camera not need to move when you make the different size of box.
Dual box forming station and air pressing at one time. This machine has applied visual positioning for easy and high accurate positioning. Automatic setting in the forming station make the whole machine setting time reduce grealty.It suitable for customer seeking for smart high speed rigid box making machine. This is an ideal machine for rigid box manufacturer who has long and stable but changable orders.
The LS-300D is best choice for rigid box, cardboard box, cosmetic box, ring box, shoe box, lip and bottom box, jewelrry box, phone box prodcution.
Price vary with raw material cost, please contact our sales for latest prices.
The Automatic Intelligent Rigid Box Making Machine is a best idea for the packaging industry or box making supplies. Its advanced technology, user-friendly interface, and efficient design make it an ideal choice for businesses that require high-quality packaging solutions. Contact us today to learn more about this innovative machine and how it can benefit your business.
