Product Details:
|
| Paper Size(max): | L650*W400mm | Paper Size (min): | L130*W120mm |
|---|---|---|---|
| Cardboard Size (max): | L580*W380mm | Cardboard Size (min): | L110*W90mm |
| Box Size (Lenght): | L80-400mm | Box Size (Width): | W60-300mm |
| Box Size (Height): | H15-100mm |

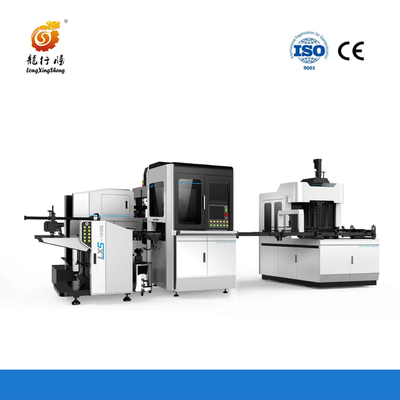

Multifunctional Fully Automatic Mobile Phone Cosmetics And Perfume Rigid Box Leather Shell Book Box Making Machine
Machine
Versatile fully automatic rigid box machine transforms the box making, packaging and forming industries. The LS-1246G is an advanced machine with an array of advanced features guaranteed to streamline your production process and deliver high-quality results every time.
This machine can handle a variety of box sizes and styles, making it ideal for businesses of all sizes. With its advanced technology, this machine can quickly and efficiently create custom boxes that meet your specific requirements. The largest box processing size is 600*400*120mm, and the smallest processing size is 100*60*15mm. Not only that, this machine can also be connected to a four-bread machine to make crusts
| Type | LS-1246G |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-130mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-25 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3500kg |
| Machine dimension | L6500*W3800*H3000mm |
Whether you want to improve your box packaging process, streamline your box forming operations, or simply increase productivity and efficiency, our rigid box forming machines are the perfect solution. So why wait? Invest in the best products today and take your business to the next level with our advanced rigid box forming machines!
The cardboard box making industry & rigid box making supplies have evolved greatly over the years, and the demand for high-quality box packaging solutions has increased significantly. The introduction of automated box wraaping machines has made it easier to produce packaging products in large quantities while maintaining high levels of quality. One such machine is the multifunctional fully automatic rigid box making machine, which has gained popularity among customers worldwide. we will explore the features and benefits of the Longxing Sheng intelligent rigid box making machine.(Working speed:15-25pcs/min)
LS-1246G fully automatic multifunctional hard box machine is convenient for box making and hardcover(book cover) factories. It includes box corner pasting, paper bonding, box and box positioning, box packing and pressing once.
This machine adopts visual positioning, simple positioning and high precision. This machine is suitable for orders above 1000pcs. It works in a wide range. The maximum box length is 600mm, the maximum box height is 400mm, and the maximum height is 130mm. LS-1246G is equipped with paper feeding device, which can position hardcover books. The maximum number of feeding cardboard sheets is five.
The LS-1246G is best choice for rigid box, book-type box,cardboard box, cosmetic box, ring box, shoe box, lip and bottom box, jewelrry box, phone box prodcution.
Forming part. Applied the box picker to feeding box to puching rod. It can using the wooden mold and plastic mold.
Features:
The Longxing Sheng intelligent rigid box making machine is designed with advanced technology to produce high-quality rigid boxes efficiently. The machine is equipped with a range of features that make it stand out from other packaging machines in the market. Some of the features of this machine include:
1. Fully automated: The Longxing Sheng intelligent rigid box making machine is fully automated, which means that it requires minimal human intervention during the production process. This feature ensures that the machine operates at optimal efficiency, reducing the risk of errors and increasing the production output.
2. High-speed production: The machine is designed to produce rigid boxes at high speeds, making it suitable for mass production. The high-speed production feature ensures that the machine can produce a large number of boxes in a short time, reducing the production time and increasing efficiency.
3. Versatile: The machine is versatile and can produce a range of rigid boxes of different sizes and shapes. This feature makes the machine suitable for a wide range of packaging applications, including cosmetics, electronics, and food packaging.
4.This machine can use in rigid box making,slant side box making,160cm high box making and so on.
1. Suitable for all kinds of rigid boxes
2. Visual positioning system and robot grasping (positioning error is less than 0.1mm)
3. Suitable for making hard case boxes of various sizes
4. Yamaha robotic arm
5. Holding box forming mechanism, anti-scratch
6. New circulating temperature control gluing system
7. Troubleshooting
8. Precise four-corner holding box robotic arm
9. Automatic suction and feeding of paper and cardboard
10. Using precise sliding table to finish lateralfolding, the length of folding can be adjusted
11. High-precision CAM feeding
12. Built-in constant temperature system (optional)
13. Panasonic servo control system
14. HD camera positioning
