Product Details:
|
| Paper Size(max): | L800*W600mm | Paper Size(min): | L180*W100mm |
|---|---|---|---|
| Game Board Size/Hard Cover (max): | 750*450mm | Game Board Size/Hard Cover（min）: | 160*120mm |
| Paper Thickness: | 100-200g/㎡ | Working Speed: | ≤30 Hard Cover/ Min |
| Robot Accuracy: | ≤0.1mm | Motor Power: | 7.5kw/380v 3 Phase |

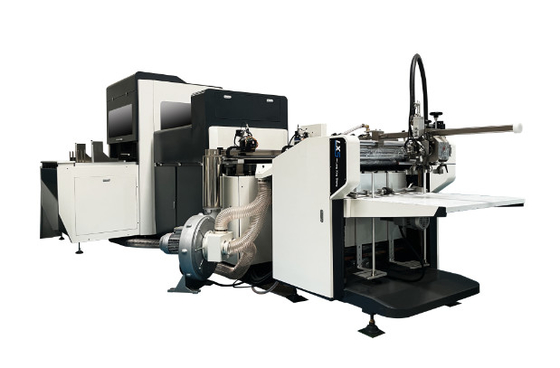

LS-450XL Automatic Leather Shell Photo Frame Rigid Box Visual Positioning Machine
Automatic introduction
The automatic rigid box leather case photo frame visual positioning machine is an automated equipment used to locate and locate rigid box leather case photo frames. It achieves rapid positioning and assembly on automated production lines by using a vision system and related algorithms to accurately detect and locate the position of the photo frame.
| Type | LS-450 XL |
| Paper size(max) | L800*W600mm |
| Paper size(min) | L180*W100mm |
| Game board size/Hard cover (max) | 750*450mm |
| Game board size/Hard cover(min) | 160*120mm |
| Paper thickness | 100-200g/㎡ |
| Working speed | ≤30 hard cover/ min |
| robot accuracy | ≤0.1mm |
| Motor power | 7.5kw/380v 3 phase |
| Heating Power | 4kw |
| Air pressure | 10L/min 0.6Mpa |
| Weight of machine | 2050kg |
| Machine dimension | L5980*W3180*H2100mm |
The following is a detailed introduction to the main components and functional features of the device:

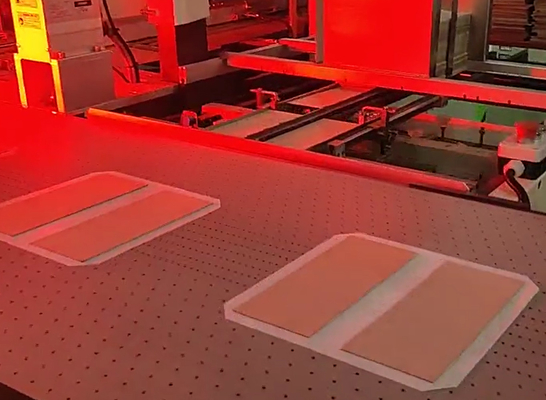

Vision system: The automatic rigid box photo frame vision positioning machine is equipped with a high-performance vision system, which usually includes cameras, image processing software and algorithms. The camera is used to obtain the image of the photo frame, and the image processing software and algorithms are used to analyze and process the image data to achieve accurate positioning of the photo frame.
Positioning Algorithm: The device uses advanced positioning algorithms to identify and locate the location of the photo frame. These algorithms can perform image processing and pattern matching based on the characteristics and shape of the photo frame to determine the accurate position and posture of the photo frame.
Transport system: Automatic rigid box leather photo frame visual positioning machines are usually equipped with a transport system for transporting photo frames from one workstation to another. The transfer system can be a conveyor belt, robotic arm or other automated equipment to achieve fast and accurate transfer of photo frames.
Control System: The device also includes a control system that controls and coordinates the operation of the various components. The control system can adjust the speed and position of the transmission system based on feedback from the vision system to ensure accurate positioning and assembly of the photo frame.
User interface: Automatic rigid box photo frame vision positioning machines usually have an easy-to-operate user interface, allowing the operator to monitor the operating status of the equipment and make necessary settings and adjustments.
High precision and efficiency: This equipment features high precision and efficiency, capable of quickly and accurately
positioning and assembling rigid box photo frames. This helps improve production efficiency and quality of the production line.
Company Introduction
Dongguan Longxingjian Intelligent Equipment Co.,Ltd is located in world manufacturer city----Dongguan City, Guangdong Province. The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd. We have independent R&D department. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery`s research, development, manufacturing and selling for more than 12 years. Grooving machine series and rigid box forming series are our main products.
We hold "professional, focus, customer first" as our operating principle, insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing&Packaging industry.
Our advantages
Certificates: ISO9001-2008, Quality management system, CE certificate.
Mission & Vision: Provide smart modular for packaging.
Products scope: Automatic rigid box making machine. V grooving machine. Visual positioning machine. Rigid box former. Corner
pasting machine. Gluing machine and other machinery.
Market positioning: Middle and high-end market
