Product Details:
|
| Paper Size(max): | L650*W400mm | Paper Size (min): | L130*W120mm |
|---|---|---|---|
| Box Size (Lenght): | L80-400mm | Box Size (Width): | W60-300mm |
| Box Size (Height): | H15-100mm | Robot Accuracy: | ±0.1mm |
| Paper Thickness: | 100-350g/m² | Paper Staking Height: | 540mm/100kg |

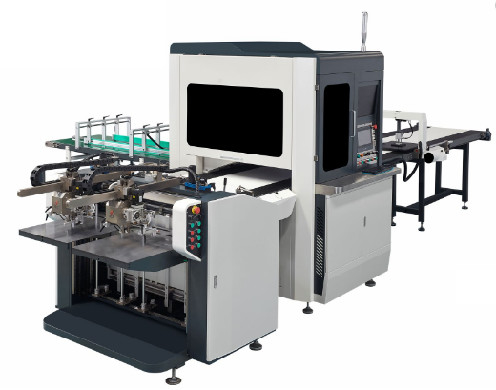

LS-900C introduction
The automatic dual-channel high-speed and high-precision rigid box visual positioning machine is an automated equipment specially used to position rigid boxes. It has the characteristics of dual-channel, high speed and high precision. The following is a detailed introduction to the device:
| Machine model | LS-900C |
| Paper size(max) | L650*W400mm |
| paper size (min) | L130*W120mm |
| Cardboard size (max) | / |
| Cardboard size (min) | / |
| Box Size (Lenght) | L80-400mm |
| Box Size (Width) | W60-300mm |
| Box Size (Height) | H15-100mm |
| Working speed | 12-25 (pair)/min/single station 12-38/min |
| Robot accuracy | ±0.1mm |
| Paper thickness | 100-350g/m² |
| Paper staking height | 540mm/100kg |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | / |
| Tuin in depth | / |
| Motor power | 9KW/380V 3phase |
| Heating power | 8KW |
| Air presure | 30L/min |
| Machine dimension | L6600*W3860*H2200mm |
| Weight of Machine | 2300kg |
Dual-channel design: The automatic dual-channel high-speed and high-precision rigid box visual positioning machine has two independent channels, which can process the box body and box lid of the rigid box at the same time. This design can significantly improve production efficiency, allowing the equipment to handle multiple boxes at the same time and reducing production line downtime. Can handle 25 pairs of boxes per minute, that is, fifty boxes per minute
High-speed positioning: This equipment uses high-speed image processing and algorithms to complete the positioning of the rigid box in a very short time. High-speed positioning can increase production
High-precision positioning: The automatic dual-channel high-speed and high-precision rigid box visual positioning machine has high-precision positioning capabilities and can accurately detect and locate the position and attitude of the rigid box. This high-precision positioning helps ensure accuracy and consistency during assembly and production of rigid boxes.
Vision system: The device is equipped with an advanced vision system, including a high-resolution camera and professional image processing software. The vision system is able to capture images of the rigid box and achieve accurate positioning through image processing and analysis.
Automated transfer system: Automatic dual-channel high-speed and high-precision rigid box vision positioning machines are usually also equipped with an automated transfer system for transferring rigid boxes from one workstation to another. The transfer system quickly and accurately positions the boxes into the correct position for subsequent assembly and handling.
Adjustability and Adaptability: The device typically has the ability to adjust and adapt to different sizes and shapes of rigid boxes. It can adapt to boxes of different specifications by adjusting algorithms and parameters to meet different production needs.
User interface and control system: The automatic dual-channel high-speed and high-precision rigid box vision positioning machine is equipped with an easy-to-operate user interface through which the operator can monitor the operating status of the equipment and perform settings. The control system can accurately control the operation of the equipment to achieve high-speed and high-precision positioning and assembly.
The automatic dual-channel high-speed and high-precision rigid box visual positioning machine is an efficient and accurate automation equipment that can greatly improve the production efficiency and quality of the rigid box production line. It is suitable for production environments that require high-speed and high-precision positioning, and can quickly and accurately complete box positioning and assembly tasks.
