Product Details:
|
| Quantity Of Groove At A Time: | 8 Slots | Working Speed: | 40m/min(100-200pcs/min) |
|---|---|---|---|
| Cardboard Size: | 140*120-1000*600mm | Cardboard Thickness: | 1-4mm |
| Motor Power: | 2kw/380v | Machine Dimension: | L2050*W1600*H1350mm |
| Machine Weight: | 1430kg |

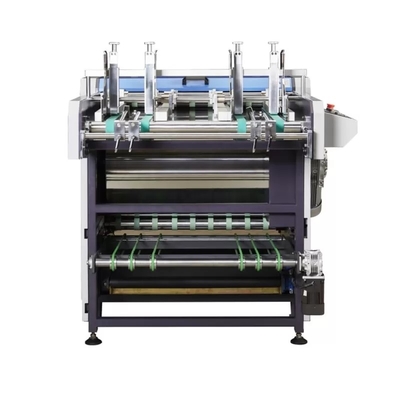

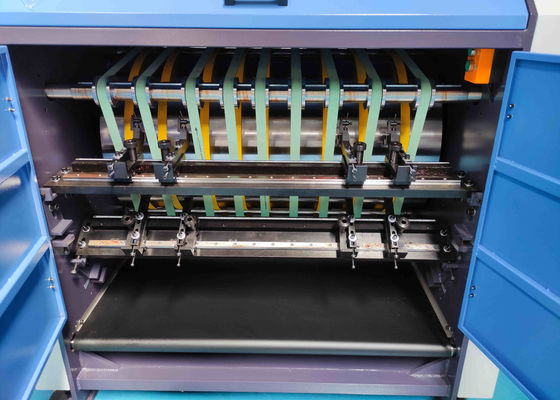

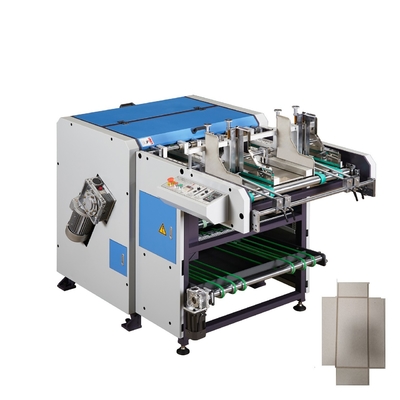

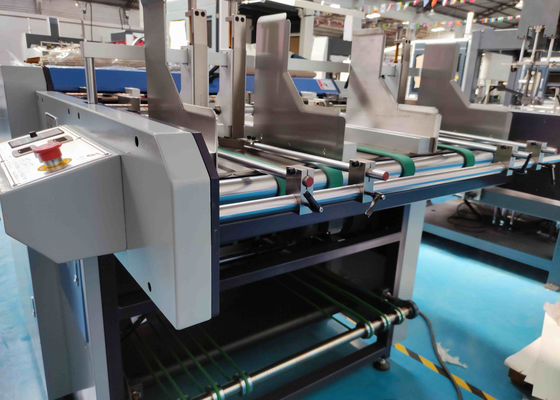

Automatic High-speed Correction System Gray Board Cardboard Density Board Slotting Machine
LS-1200B is our company is one of hot selling production. This machine can handle cardboard, carton paper and MDF board. The grooving area of this machine is high speed and dustless, it can handle 100-200 pcs/min. It can adjust different angle on this machine without changing the blade.
| Machine model | LS-1200B |
| Quantity of groove at a time | 8 slots |
| Working speed | 40m/min(100-200pcs/min) |
| Cardboard size | 140*120-1000*600mm |
| Cardboard thickness | 1-4mm |
| Motor power | 2kw/380v |
| Machine dimension | L2050*W1600*H1350mm |
| Machine weight | 1430kg |
Automatic high-speed correction system Gray board density board slotting machine is an advanced equipment. Its automatic correction system and high-speed production capabilities can improve grooving quality and production efficiency. It is suitable for grooving processing of gray cardboard density boards and provides high-quality carton production solutions for the packaging industry.
The automatic high-speed correction system gray board density board slotting machine is an advanced equipment dedicated to the slotting of gray board density board. The following is a detailed introduction to the device:
Function: This equipment is mainly used for grooving processing of gray board and cardboard density board. Notching is the cutting of cardboard into notches suitable for folding and assembly so that it can be folded into a box or other packaging form. The equipment has an automatic high-speed deflection correction system that can correct the deflection of the cardboard, making the grooving operation more accurate and stable.
Automatic high-speed correction system: This equipment is equipped with an advanced automatic correction system that can detect and correct the deflection of the cardboard. Before the cardboard enters the grooving area, the deflection correction system automatically adjusts the position and direction of the cardboard to ensure that the grooving tool cuts the cardboard accurately and avoids poor grooving results caused by deflection.
High-speed production capacity: This grooving machine is designed for high-speed production environments and has fast and stable grooving capabilities. High-speed production capabilities can meet large-scale production needs and improve production efficiency.
Suitable for gray board density board: This equipment is specially suitable for grooving processing of gray board density board. Gray cardboard density board is a kind of high-density cardboard, which is often used in the production of high-end packaging boxes, gift boxes, etc. The equipment is optimized for the characteristics of gray cardboard density board to ensure slotting quality and efficiency.
Gray board density board has a high density and strength, so a certain amount of strength and precision are required during the slotting process. The equipment is equipped with appropriate grooving cutters and control systems, enabling high-precision grooving operations to ensure smooth and fine grooving lines.
Our advantages
Certificates: ISO9001-2008, Quality management system, CE certificate.
Mission & Vision: Provide smart modular for packaging.
Products scope: Automatic rigid box making machine. V grooving machine. Visual positioning machine. Rigid box former. Corner
pasting machine. Gluing machine and other machinery.
Market positioning: Middle and high-end market
