Product Details:
|
| Paper Size(max): | L800*W600mm | Paper Size(min): | L180*W100mm |
|---|---|---|---|
| Game Board Size/Hard Cover (max): | 750*450mm | Game Board Size/Hard Cover（min）: | 160*120mm |
| Paper Thickness: | 100-200g/㎡ | Working Speed: | ≤30 Hard Cover/ Min |
| Robot Accuracy: | ≤0.1mm | Motor Power: | 7.5kw/380v 3 Phase |

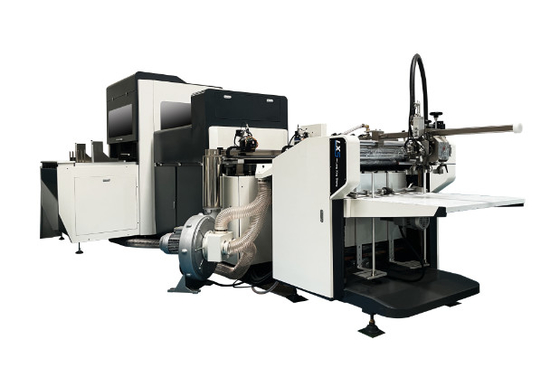

LS-450XL Automatic Leather Shell Photo Frame Rigid Box Visual Positioning Machine
Automatic introduction
Fully automatic visual positioning machine for hard case leather photo frame is an automatic device used for positioning hard case leather photo frame. Accurately detect and locate the photo frame through a vision system and associated algorithms, enabling rapid positioning and assembly on automated production lines.
| Type | LS-450 XL |
| Paper size(max) | L800*W600mm |
| Paper size(min) | L180*W100mm |
| Game board size/Hard cover (max) | 750*450mm |
| Game board size/Hard cover(min) | 160*120mm |
| Paper thickness | 100-200g/㎡ |
| Working speed | ≤30 hard cover/ min |
| robot accuracy | ≤0.1mm |
| Motor power | 7.5kw/380v 3 phase |
| Heating Power | 4kw |
| Air pressure | 10L/min 0.6Mpa |
| Weight of machine | 2050kg |
| Machine dimension | L5980*W3180*H2100mm |
Below is a detailed introduction to the main components and functional features of the device.
Vision System: Fully automatic sky and ground box photo frame vision positioning machines are usually equipped with a high-performance vision system that includes a camera, image processing software, and algorithms. A camera is used to capture images of the photo frame, and image processing software and algorithms analyze and process the image data to achieve accurate positioning of the photo frame.
Positioning Algorithm: The device uses advanced positioning algorithms to locate and locate the photo frame. These algorithms perform image processing and pattern matching based on the photo frame's characteristics and shape to determine the exact position and orientation of the photo frame.
Conveying System: Automatic hard box leather picture frame vision positioning machines are usually equipped with a conveying system to convey picture frames between workstations. The transport system can include conveyor belts, robotic arms, or other automated equipment that provides fast and accurate transport of photo frames.
Control System: The device also includes a control system that controls and coordinates the operation of the various components. The control system adjusts the speed and position of the transmission system based on feedback from the vision system, ensuring accurate positioning and assembly of the photo frame.
User Interface: Automatic hard box picture frame vision positioning machines typically have an easy-to-operate user interface that allows the operator to monitor the operating status of the equipment and make necessary settings and adjustments.
High precision and efficiency: This equipment has high precision and efficiency, allowing you to perform tasks quickly and accurately.
Place and assemble the hard box picture frame. Contributes to improving production efficiency and quality on production lines.
Adaptability: Automatic sky and ground box photo frame visual positioning machine usually has a certain adaptability and can adapt to photo frames of different sizes and shapes. The algorithm can be adjusted and trained to adapt to different photo frame requirements.
Company Introduction
Dongguan Longxing Jian Intelligent Equipment Co., Ltd. is located in Dongguan City, Guangdong Province, a world-famous manufacturing city. The original company name was Dongguan Longxingsheng Machinery Co., Ltd. Our company has an independent research and development department. Currently, we have obtained more than 20 patents, including utility patents, appearance patents, and technology patents. Our company is specialized in research, development, manufacturing and sales of post-press machinery for over 12 years. Slotting machine series and sky and ground box forming series are our main products.
Our company adheres to the business principles of "professionalism, focus, customer first" and insists on surviving through quality, pursuing efficiency through strict management, and developing through creativity. We will strive to build a national brand and contribute our strengths to the printing and packaging industry.
Our advantages
Certificates: ISO9001-2008, Quality management system, CE certificate.
Mission & Vision: Provide smart modular for packaging.
Products scope: Automatic rigid box making machine. V grooving machine. Visual positioning machine. Rigid box former. Corner
pasting machine. Gluing machine and other machinery.
Market positioning: Middle and high-end market
