Product Details:
|
| Paper Size(max): | L800*W600mm | Paper Size (min): | L180*W100mm |
|---|---|---|---|
| Box Size(max): | L600*W400*H120mm | Box Size(min): | L80*W65*H15mm |
| Paper Thickness: | 100-350g/㎡ | Cardboard Thickness: | 0.5-3mm |
| Working Speed: | ≤45sheets/min | Positioning Accuracy: | ≤0.1mm |
| Motor Power: | 7.5 Kw/380v 3 Phase |

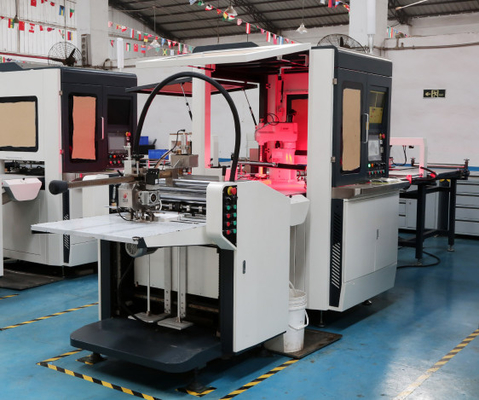

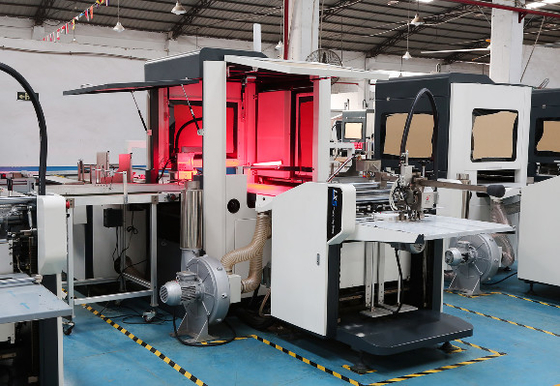

Automatic High-Precision High-Speed High-Quality Rigid Box Positioning Machine
Machine introduction
The LS-450 PLUS is equipped with advanced automation technology, allowing for the automatic production of hardcover rigid boxes. It streamlines the manufacturing process and significantly improves productivity with its impressive speed of 45 pieces per minute.
| Machine model | LS-450 Plus |
| Paper size(max) | L800*W600mm |
| paper size (min) | L180*W100mm |
| Box size(max) | L600*W400*H120mm |
| Box size(min) | L80*W65*H15mm |
| Paper thickness | 100-350g/㎡ |
| Cardboard thickness | 0.5-3mm |
| Working speed | ≤45sheets/min |
| Positioning accuracy | ≤0.1mm |
| Motor power | 7.5 kw/380v 3 phase |
| Heating power | 8 kw |
| Air pressure | 10L/min 0.6MPa |
| Weight of machine | 2100kg |
| Machine dimension | L5980*W3180*H2100mm |
One of the notable features of this machine is its visual positioning system. It utilizes cutting-edge imaging technology to accurately position and align the components of the rigid boxes during the production process. This ensures precise and consistent results, maintaining the quality and integrity of each box.
The LS-450 PLUS is designed to handle the production of various types of hardcover rigid boxes. Whether it's for luxury packaging, electronics, cosmetics, or other high-end products, this machine can cater to diverse industry needs.
With its high-speed operation and visual positioning capabilities, the LS-450 PLUS offers a reliable and efficient solution for manufacturers seeking to enhance their rigid box production processes. It combines speed, accuracy, and versatility to meet the demands of a fast-paced and quality-driven market.
Hardcover sky and earth box function: LS-450 PLUS is specially designed for hardcover sky and earth box products, and can efficiently complete the assembly and positioning of the sky and earth box. This type of boxes are usually widely used in gift packaging, high-end product packaging, etc., because they can provide a more exquisite and high-end appearance.
Reliability and Stability: LS-450 PLUS focuses on the reliability and stability of the equipment. It uses high-quality components and advanced control systems to ensure stable operation and long-term reliability of the equipment.
Easy to operate: The device adopts a user-friendly interface and operation control panel, allowing operators to easily set up and monitor the operating status of the device. In addition, the device also provides fault diagnosis and alarm functions to help solve potential problems in a timely manner.
Safety guarantee: LS-450 PLUS equipment has safety guarantee measures, including safety sensors, emergency stop buttons and protective covers, to ensure the safety of operators.
Our advantages
Certificates: ISO9001-2008, Quality management system, CE certificate.
Mission & Vision: Provide smart modular for packaging.
Products scope: Automatic rigid box making machine. V grooving machine. Visual positioning machine. Rigid box former. Corner
pasting machine. Gluing machine and other machinery.
Market positioning: Middle and high-end market
