Product Details:
|
| Paper Size(max): | L800*W600mm | Paper Size (min): | L180*W100mm |
|---|---|---|---|
| Box Size(max): | L600*W400*H120mm | Working Speed: | ≤45sheets/min |
| Positioning Accuracy: | ≤0.1mm | Motor Power: | 7.5 Kw/380v 3 Phase |
| Heating Power: | 8 Kw |

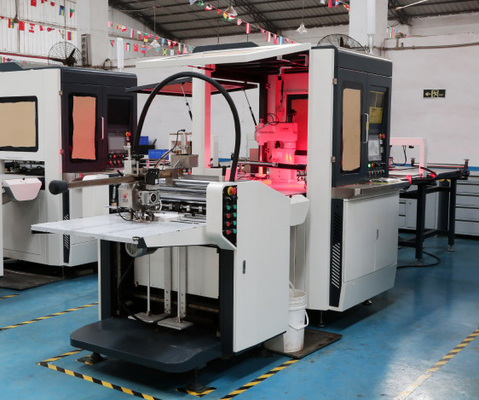

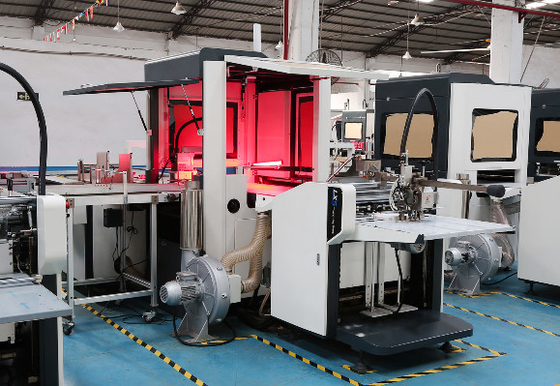

Automatic High Speed 45 Pc Per Min Watch Toy Phone Shoes Rigid Box Visual Positioning Machine
Machine introduction
In today's fast-paced manufacturing industry, the need for automation and precision is becoming increasingly important. This is especially true for packaging and printing companies that require high-quality products with accurate measurements and consistent performance. Fully automatic hard box visual positioning machines were developed to meet these needs and have become a popular choice among customers around the world.
| Machine model | LS-450 Plus |
| Paper size(max) | L800*W600mm |
| paper size (min) | L180*W100mm |
| Box size(max) | L600*W400*H120mm |
| Box size(min) | L80*W65*H15mm |
| Paper thickness | 100-350g/㎡ |
| Cardboard thickness | 0.5-3mm |
| Working speed | ≤45sheets/min |
| Positioning accuracy | ≤0.1mm |
| Motor power | 7.5 kw/380v 3 phase |
| Heating power | 8 kw |
| Air pressure | 10L/min 0.6MPa |
| Weight of machine | 2100kg |
| Machine dimension | L5980*W3180*H2100mm |
The fully automatic hard box vision positioning machine is an intelligent machine that uses advanced technology to provide efficient and accurate results. It is equipped with a PLC (Programmable Logic Controller) that allows precise control of the machine's movements and functions. In addition, the installation of a robot arm further improved accuracy and efficiency. Additionally, the machine is equipped with high-performance and reliable servo motors, providing smooth and consistent operation.
One of the main advantages of fully automatic sky and ground box visual positioning machines is their ability to provide precise positioning of sky and ground boxes. This is achieved using advanced vision technology that allows the machine to detect and analyze the position of the box with great accuracy. This ensures that the boxes are positioned correctly and the subsequent production process runs smoothly.
Another advantage of fully automatic hardbox visual positioning machines is their high efficiency. These machines are designed to operate quickly and achieve high output. This is especially important for companies that need to produce large quantities of products in a short period of time.
The fully automatic hard box vision positioning machine has received positive feedback from customers all over the world. Its advanced technology, high precision, and high efficiency make it a popular choice for packaging and printing companies. Additionally, the user-friendly interface and easy-to-use controls make it easy for operators to operate and maintain.
To sum up, the fully automatic sky-and-ground box visual positioning machine is an intelligent and efficient machine specially designed to meet the needs of the packaging and printing industry. Its advanced technology, high precision, and high efficiency make it a popular choice among customers around the world. With its user-friendly interface and easy-to-use controls, it is the ideal machine for companies that require high-quality products with precise measurements and consistent performance.
