Product Details:
|
| Feature: | Cardboard Grooving | Function: | Carton Paper Grooving |
|---|---|---|---|
| Color: | Black And White | Grooving Quantity: | 1-12 |
| Working Speed: | 2-10m/min | Max Size: | 400*400mm |
| Min Size: | 140*140mm | Grooving Depth Accracy: | About 0.05 |
| Cartin Paper Thickness: | 190-600g/㎡ | Carboard Thickness: | 0.8-2.2mm |
Efficient and Intelligent Operation: The machine is designed to optimize production processes, reducing manual labor and increasing overall efficiency. Its intelligent features ensure precise and consistent grooving, minimizing errors and material waste.
Digital Dimension Input: Users can easily enter the required dimensions for grooving digitally, ensuring high accuracy and eliminating the need for manual measurement. This feature streamlines the setup process and reduces the likelihood of human error.
Recipe Storage and One-Click Retrieval: ◦ The machine allows users to save grooving recipes for different projects. This feature enables quick retrieval of stored settings, making it easy to switch between different jobs without the need for reconfiguration. It significantly reduces setup time and enhances productivity.
Freely Adjustable Grooving Angle: ◦ The grooving angle can be adjusted freely to meet specific design requirements. This flexibility allows for a wide range of applications and ensures that the machine can handle various types of cardboard and packaging designs.
Machine Parameters

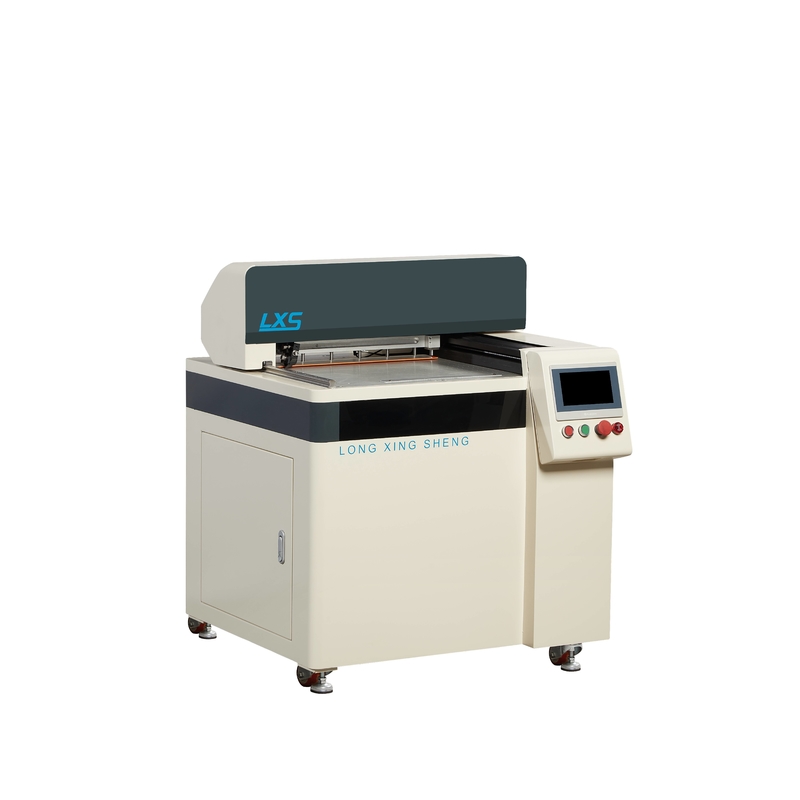

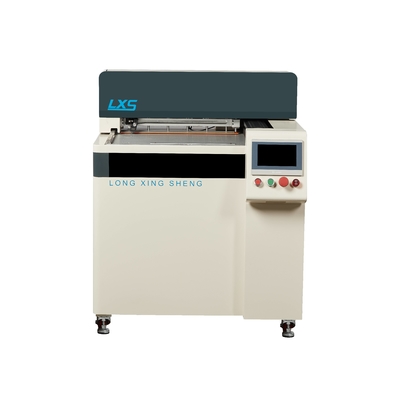

| Product name | Automatic Digital Carton Paper Cardboard Grooving Machine | ||
| Type | LS-G1 | ||
| Max size | 400*400mm | ||
| Min size | 140*140mm | ||
| Working speed | 2-10m/min | ||
| Grooving size accuracy | about 0.15mm | ||
| Grooving depth accuracy | about 0.05 | ||
| Cardboard thickness | 0.8-2.2mm | ||
| Cartonpaper thickness | 190-600g/㎡ | ||
| Motor power | 2.5kw/220v | ||
| Machine dimension | L880*W860*H1100mm | ||
| Machine weight | 210kg |
Result of grooving cardboard
