Product Details:
|
| Feature: | Cardboard Grooving | Function: | Carton Paper Grooving |
|---|---|---|---|
| Color: | Black And White | Max Grooving Quantity: | 8 Slots |
| Working Speed: | 2-10m/min | Max Size: | 600*450mm |
| Min Size: | 140*140mm | Grooving Depth Accracy: | About 0.05 |
| Cartin Paper Thickness: | 220-600g/㎡ | Carboard Thickness: | 0.8-3mm |

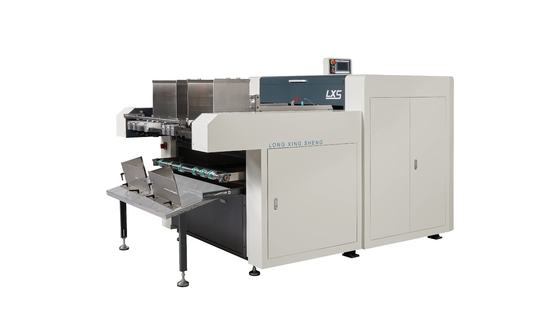

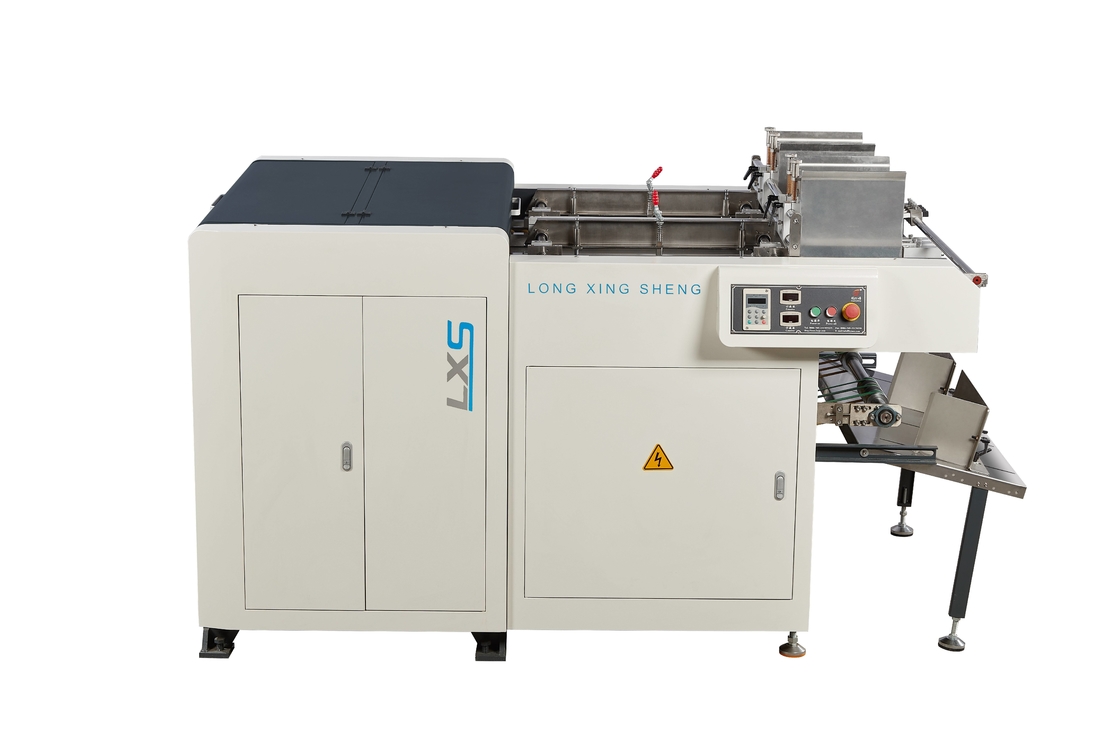

The G3 Intelligent Cardboard Grooving Machine is an advanced solution tailored for high-precision grooving in the production of desk calendars, book covers, luxury packaging, and other premium paperboard products. Engineered with cutting-edge digital technology, this machine ensures efficiency, accuracy, and seamless operation, significantly enhancing productivity and product quality.
1. Digitally intelligent,adjust the grooving dimensions
2. Digitally electric adjustment with positioning gauge
3. Intelligent electric adjustment of the belts and cutter holder
Paper Feeding Aligning System
l An advanced paper feeding system with automatic alignment ensures precise and consistent material placement, minimizing waste and improving productivity.
l The system detects and corrects misalignment in real time, guaranteeing flawless processing even at high speeds.
Versatile for Small-Scale Work – Min Size: 140×140mm
l The machine accommodates small-sized materials down to 140×140mm, providing flexibility for intricate and detailed projects.
l Precision-engineered components ensure clean cuts and grooves regardless of material size.
Additional Benefits:
User-Friendly Interface: An intuitive control panel allows for easy operation, reducing training time and improving efficiency.
High-Speed Performance: Optimized for fast processing without compromising accuracy, boosting overall productivity.
Durable Construction: Built with high-quality materials to ensure long-term reliability and minimal maintenance.
This machine is designed to enhance efficiency, precision, and versatility in grooving and cutting applications, making it an ideal solution for modern production environments.
Machine Parameters
| Product name |
Carton Paper Grooving Machine for Cosmetic and Food Boxes |
||
| Type | LS-G3 | ||
| Max groovinf quantity | 8 slots | ||
| Feeding guide adjustment method | Electric adjustment | ||
| Blade adjustment method | Automatic size adjustment | ||
| Blade row quantity | 2 rows | ||
| Max size | 600*450mm | ||
| Min size | 140*140mm | ||
| Working speed | 2-10m/min | ||
| Grooving size accuracy | about 0.1mm | ||
| Highest accuracy | about 0.04mm | ||
| Cardboard thickness | 0.8-3mm | ||
| Cartonpaper thickness | 220-600g/㎡ | ||
| Air supply | 10L/min 0.6mpa | ||
| Motor power | 3.2kw/380v | ||
| Machine dimension | L2880*W1950*H1700mm | ||
| Machine weight | 1870kg |
Result of grooving cardboard
Grooved cardboard and die cutting cardboard
