Product Details:
|
| Setting Mode: | Automatic |
|---|

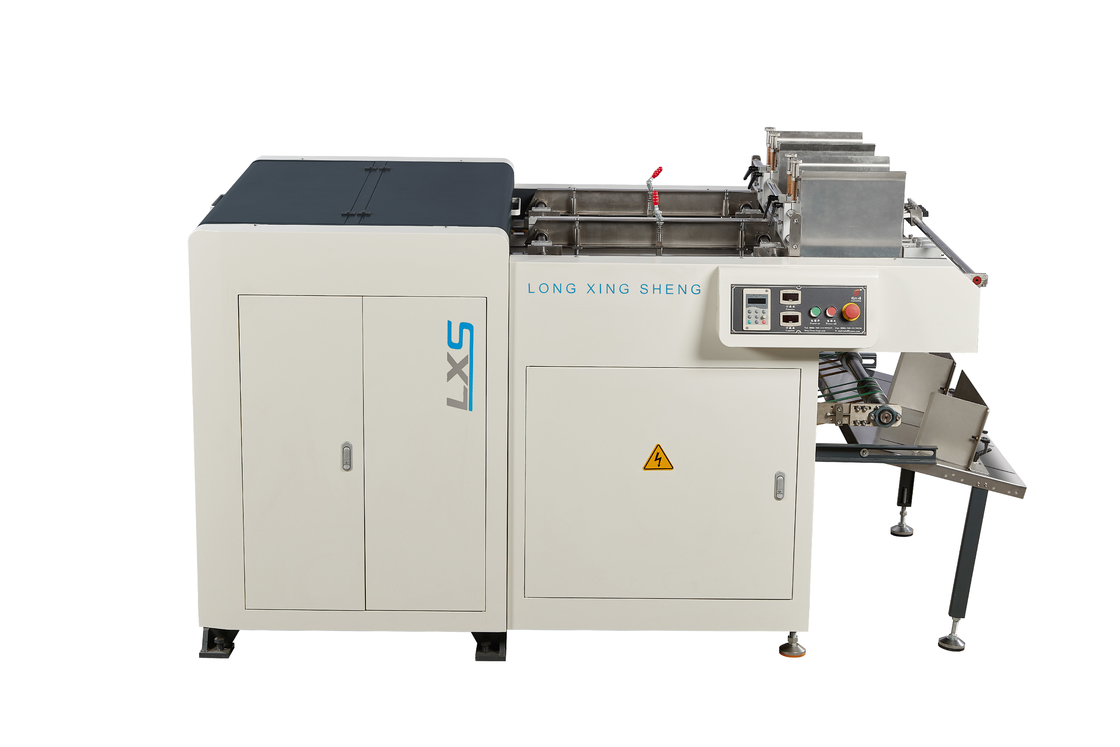

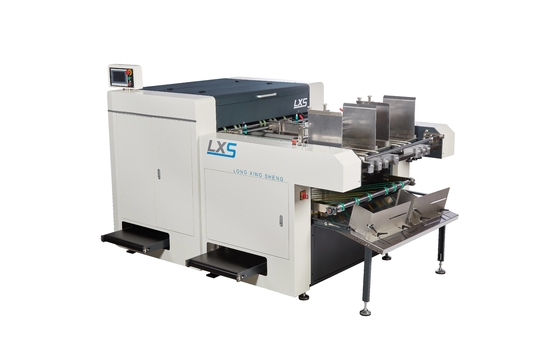

The intelligent tool adjustment gray board slotting machine is a high-end automated processing equipment designed specifically for gray board slotting. Its core feature is the intelligent tool adjustment system, which significantly improves processing accuracy and efficiency.
|
Machine model |
LS-G2 |
|
Max grooving quantity |
4 slots |
|
Feeding guide adjustment method |
Electric adjustment |
|
Blade adjustment method |
Automatic size adjustment |
|
Blade row quantity |
Single row |
|
Highest accuracy |
±0.04mm |
|
Accuracy |
±0.1mm |
|
Working efficiency |
60-180pcs/min |
|
Max size(two feeding guides) |
L600*W450mm(Feeding width) |
| Min size | L140*W140mm563675 |
| Working speed | 15-35m/min |
| Cardboard thickness | 0.8-3mm |
| Angle adjustment method | Blade row adjustment |
| Air supply | 10L/min 0.6mpa |
| Motor power | 2.8kw/380v |
| Machine dimension | L2800*W1950*H1700 |
| Mlachine weight | 1720KG |
Machine features
Digital intelligent, adjust the grooving demensions
Digital electric adjustment with positioning gauge
Intelligent electric adjustment of belts and cutter heads
Paper feeding aligning system
