Product Details:
|
| Product Name: | Smart Gift Box Wrapping Machine Rigid Box Wrapping Machine For Cell Phone Boxes | Color: | Black & White |
|---|---|---|---|
| Machine Dimension: | L1200*W1120*H3100mm | Type: | Packaging Line |
| Working Speed: | ＜20pcs/min | Automatic Grade: | Semi-automatic |
| Warranty: | 1 Year | Power: | 3.2kw/220V |
| Machine Weight: | 1150kg | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Highlight: | W1120mm Rigid Box Wrapping Machine,H3100mm Rigid Box Wrapping Machine,Box Wrapping Machine for Phone Cases |
||

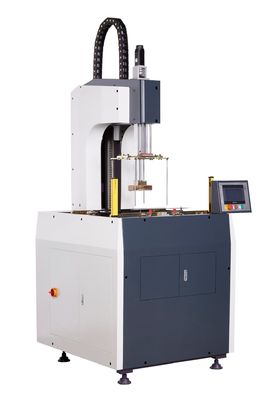

Smart Gift Box Wrapping Machine Rigid Box Wrapping Machine For Cell Phone Boxes
Applications:

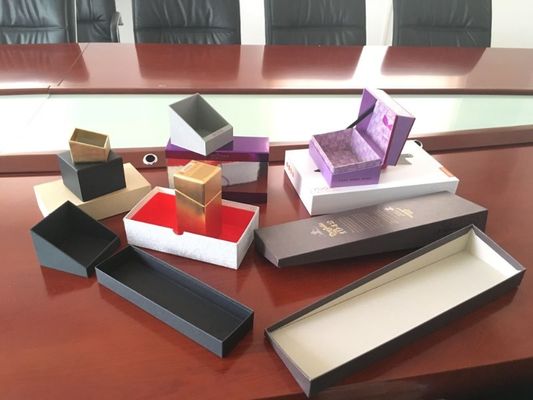

Automatic Parcel Wrapping Machine For Cardboard Boxes And Watch Boxes is used for wrapping the glued paper in the pasted box. It can finished side wrapping, edge folding, tucking in and air pressing at one time, which is suitable for all kinds of rigid box wrapping, such as jewelry boxes,watch boxes, gift boxes, cell phone boxes, perfume boxes etc.
Features:
Automatic Parcel Wrapping Machine For Cardboard Boxes And Watch Boxes is applied for wrapping the cover paper on the pasted box. When we get a new box, installed the box mold on machine, input its data on the LS-F7 touch screen. Including the box length, width, height, cover paper width, top mold height, middle mold height and tucking in blade thickness. Then press caluate, machine will automaitc come to home position and move to setting position. Load a box to checking the setting and ensure each setting is fine. Then machine can start working. Whole process will cost 8 minutes.
It is an ideal equipment for changable small orders.
Working process:
1. box positioning on glued paper
2. Long side wrapping
3. Tucking in and edge folding
4. First floor air pressing
5. Short side wrapping
6. Tucking-in and second floor air pressing
| Type | LS-F7 |
| Max box size | L430*W350*H110mm |
| Min box size | L80*W65*H10mm |
| Motor power/voltage | 3.2kw/220V |
| Air supply | 10L/min 0.6Mpa |
| Working speed | ≤20pcs/min |
| Machine dimension | L1200*W1120*H3100mm |
| Weight of machine | 1150kg |
Company introduction:
Longxingsheng Machinery Co.,Ltd is located in world manufacturer city----Dongguan City, Guangdong Province. The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd. We have independent R&D department. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery`s research, development, manufacturing and selling for more than 13 years. Grooving machine series and rigid box forming series are our main products.
1. What is LXS company machine warranty?----1 year warranty including free machine parts replacement ( consumables are not included).
2. Does your machine with CE certificate?----Yes.We have CE ,ISO9001 .
3. What is the production time while placing order?---- Within 7-30 workdays.
4. Do you have stock product to sell?----Normally we do,it depends on which models you inquired .
5. What is your lead time?----Within 5-30 workdays ,we will arrange your order upon receiving your 30% deposit on order and ship out the machine before receiving your 70% remaining payment.
6. Can LXS company handle shipping for customers?----Yes.(Please provide us your requested sea port and we can check the shipping cost from logistic company and arrange shipping for you.
7. Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case,all are confirm to export packing standard.
8. How about after-sales service process?----When your machine has problem, just contact your sales and we will solve your problem ASAP.
9. Can your engineer come to us for installing the machine & handle problems?---Yes,we can.And it is free-cost for the installing & training for 7 work days,you just need to pay for the air tickets & accommodation for our engineer.
10. Are you a manufacturer?----Yes, we are a manufacturer with over 12 years professional experience .Welcome the exclusive agents in Europe/Asia/Africa/America to join us.
11. What is the minimum quantity for order?----1 set, we done business step by step with high quality products and excellent services.
12. Do you inspect the finished products?----Yes, each step of production products will be inspection by our QC department and the running inspection video will be sent to to you for your verification before shipping.
13. What's the payment term?---FOB/CIF terms,payment by T/T 30% in advance,70% balance before shipping.(It is negotiable)
If you have any inquiry, please don't hesitate to contact us. We will reply you at the first time as we can.
