Product Details:
|
| Product Name: | LS-F7 Semi-Automatic Rigid Perfume Jewelry Box Wrapping Machine For Rigid Boxes | Machine Dimension: | L1300*W1020*H3100mm |
|---|---|---|---|
| Type: | Box Making Line | Working Speed: | ＜22pcs/min |
| Power: | 3.2kw/220V | Min Box Size: | 80*65*10mm |
| Max Box Size: | 430*350*100mm | ||
| Highlight: | Carton Wrapping Machine 22pcs/min,Jewelry carton wrapping machine,22pcs/min perfume box wrapping machine |
||

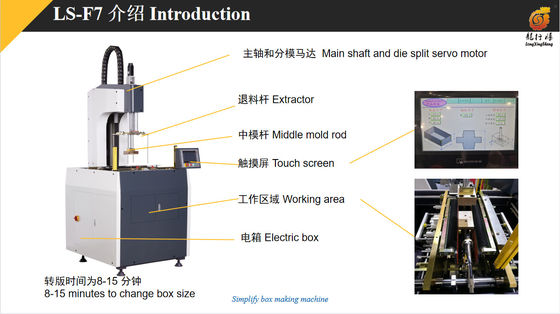

LS-F7 Semi-Automatic Rigid Perfume Jewelry Box Wrapping Machine For Rigid Boxes
A: Upper edge time: waiting time before upper edge plate cylinder running.
B: Return time after upper edging: waiting time of retraction after upper edge plate running.
C: Bottom edge time: waiting time before bottom edge plate cylinder running.
D: Return time after bottom edging；waiting time of retraction after bottom edge plate running.
Features:
LS-F7 Semi-Automatic Box Strapping Machine For Phone Boxes And Gift Boxes is applied for wrapping the cover paper on the pasted box. When we get a new box, installed the box mold on machine, input its data on the LS-F7 touch screen. Including the box length, width, height, cover paper width, top mold height, middle mold height and tucking in blade thickness. Then press caluate, machine will automaitc come to home position and move to setting position. Load a box to checking the setting and ensure each setting is fine. Then machine can start working. Whole process will cost 8 minutes.
It is an ideal equipment for changable small orders.
Working process:
1. box positioning on glued paper
2. Long side wrapping
3. Tucking in and edge folding
| Type | LS-F7 |
| Max box size | L430*W350*H110mm |
| Min box size | L80*W65*H10mm |
| Motor power/voltage | 3.2kw/220V |
| Air supply | 10L/min 0.6Mpa |
| Working speed | ≤20pcs/min |
| Machine dimension | L1200*W1120*H3100mm |
| Weight of machine | 1150kg |
Company introduction:
Longxingsheng Machinery Co.,Ltd is located in world manufacturer city----Dongguan City, Guangdong Province. The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd. We have independent R&D department. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery`s research, development, manufacturing and selling for more than 13 years. Grooving machine series and rigid box forming series are our main products.
