LS-F7 Semi Automatic Rigid Box Wrapping Machine Perfume Box Wrapping Machine

LS-F7 Semi-Automatic Rigid Small Gift Jewelry Box Wrapping Machine For Rigid box

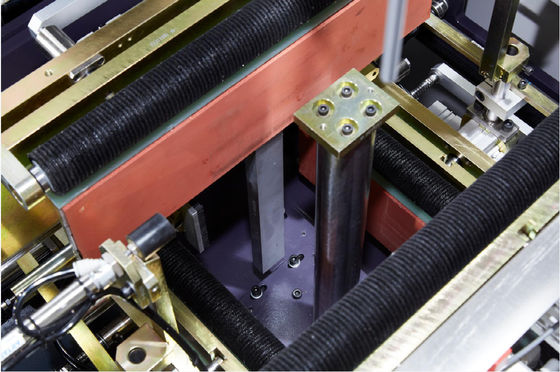

    Higher side folding brush is composed of a rolling brush, a folding ear brush, a rimming board and a pressing plate, the process of the mechanism is to roll the brush to stick the side of glued sheet and the side of the box embryo closely together, then to stick the little ear of the carton to the box embryo closely with the folding ear brush, ,after that folding the left carton which is not stick yet into the box with rimming board,pressing the carton and the side of the box embryo close together,,finally pressing the box to decrease the bubble between the carton and the box embryo with the pressing plate, and improving the quality of the product.

Features:

LS-F7 Semi-Automatic Box Strapping Machine For Phone Boxes And Gift Boxes is applied for wrapping the cover paper on the pasted box. When we get a new box, installed the box mold on machine, input its data on the LS-F7 touch screen. Including the box length, width, height, cover paper width, top mold height, middle mold height and tucking in blade thickness. Then press caluate, machine will automaitc come to home position and move to setting position. Load a box to checking the setting and ensure each setting is fine. Then machine can start working. Whole process will cost 8 minutes.

It is an ideal equipment for changable small orders.

Working process:

1. Tucking in and edge folding

2. First floor air pressing

3. Short side wrapping

4. Tucking-in and second floor air pressing
