Product Details:
|
| Product Name: | LS-F7 Semi-Automatic Rigid Small Gift Cigarate Box Wrapping Machine For Rigid Box | Machine Dimension: | L1200*W1100*H3200mm |
|---|---|---|---|
| Working Speed: | ＜18pcs/min | Automatic Grade: | Semi-automatic |
| Power: | 3.2kw/220V | Machine Weight: | 1150kg |
| Edge Folding Lenth: | 10-90mm | ||
| Highlight: | Gift perfume wrapping machine,Cigarette perfume wrapping machine,carton box stretch wrapping machine |
||

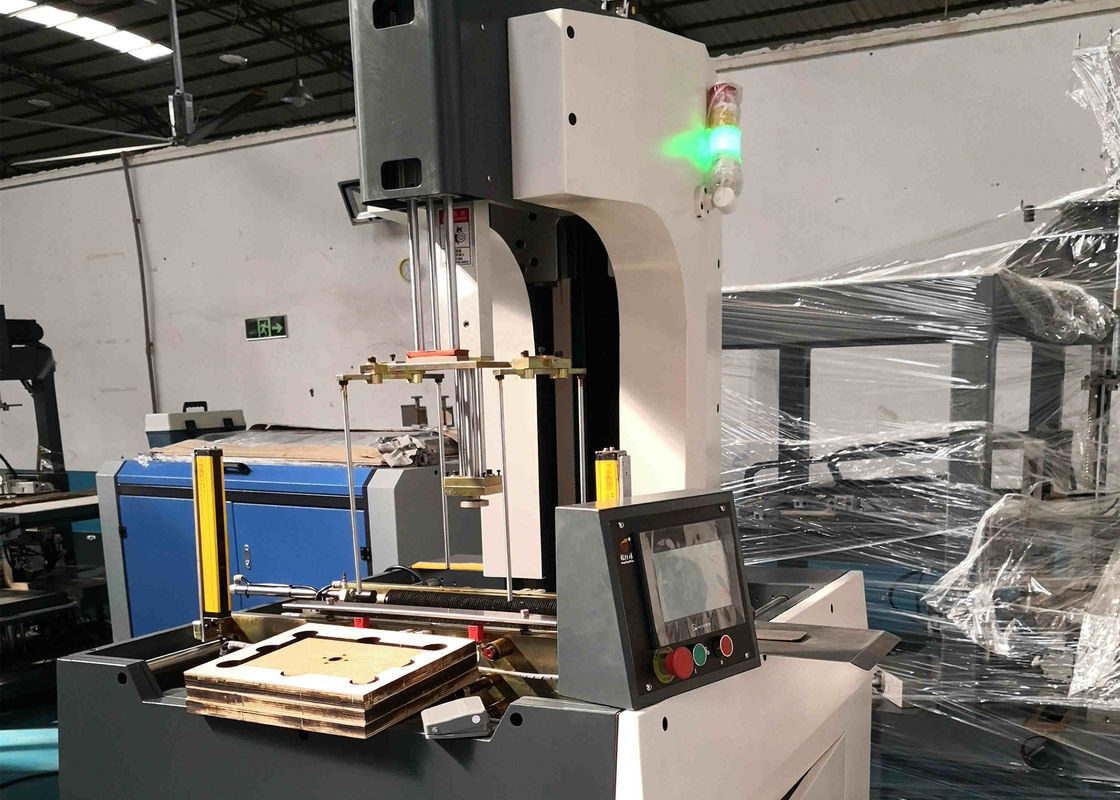

LS-F7 Semi-Automatic Rigid Small Gift Cigarate Box Wrapping Machine For Rigid box

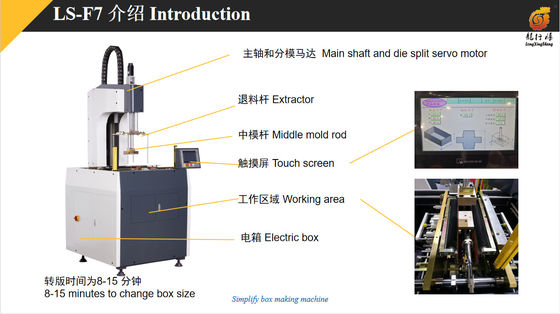

Four M6 threaded holes at the bottom of middle mold rod is used to install the middle mold or the sub-mode, and the middle mold rod is fixed by the middle mold rod locking block. There is a through hole in the center of the middle mold rod inhaling and blowing air. When the fan is turned on, the suction air reached the middle mold rod through the air pipe, the air hole inhales air, the box is sucked to ensure that the box will not fall when the gap between the mold and the box.
Applications:

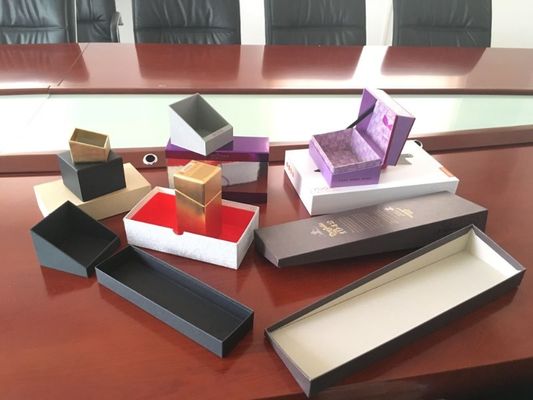

LS-F7 Semi-Automatic Box Strapping Machine For Phone Boxes And Gift Boxes is used for wrapping the glued paper in the pasted box. It can finished side wrapping, edge folding, tucking in and air pressing at one time, which is suitable for all kinds of rigid box wrapping, such as jewelry boxes,watch boxes, gift boxes, cell phone boxes, perfume boxes etc.
Working process:
1. Tucking in and edge folding
2. First floor air pressing
3. Short side wrapping
4. Tucking-in and second floor air pressing
| Type | LS-F7 |
| Max box size | L430*W350*H110mm |
| Min box size | L80*W65*H10mm |
| Motor power/voltage | 3.2kw/220V |
| Air supply | 10L/min 0.6Mpa |
| Working speed | ≤20pcs/min |
| Machine dimension | L1200*W1120*H3100mm |
| Weight of machine | 1150kg |
