Product Details:
|
| Product Name: | LS-F7 Semi-Automatic Rigid Commercial Gift Cigarate Box Wrapping Machine For Rigid Box | Machine Dimension: | L1200*W1020*H3100mm |
|---|---|---|---|
| Type: | Packing Line | Working Speed: | ＜17 Pcs/min |
| Warranty: | 1 Year | Power: | 3.2kw/220V Single Phase |
| Machine Weight: | 1400kg | ||
| Highlight: | Cigarate Rigid Box Wrapping Machine,Gift Rigid Box Wrapping Machine,Commercial Wrapping Machine H3100mm |
||
LS-F7 Semi-Automatic Rigid Commercial Gift Cigarate Box Wrapping Machine For Rigid box

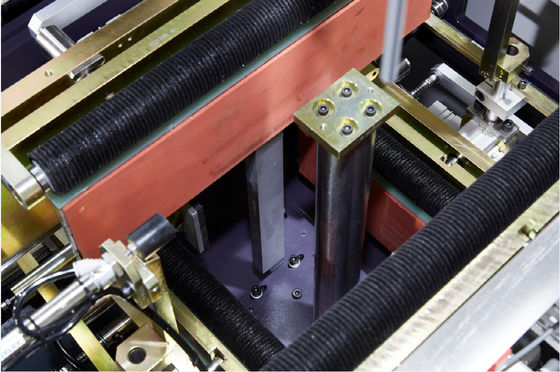

The main shaft is composed of the arm of main shaft and parting mold mechanism. The main shaft arm is driven by a timing belt, and the parting mold is driven by a ball screw. The coupling connects the servo motor and the ball screw. The parting mold rod is fixed with nut and upper mold fixing plate at both ends. The servo motor rotates to drive the upper mold fixing plate to move up and down.
Applications:
LS-F7 Semi-Automatic Box Strapping Machine For Phone Boxes And Gift Boxes is used for wrapping the glued paper in the pasted box. It can finished side wrapping, edge folding, tucking in and air pressing at one time, which is suitable for all kinds of rigid box wrapping, such as jewelry boxes,watch boxes, gift boxes, cell phone boxes, perfume boxes etc.
Working process:
1. box positioning on glued paper
2. Long side wrapping
3. Tucking in and edge folding
| Type | LS-F7 |
| Max box size | L430*W350*H110mm |
| Min box size | L80*W65*H10mm |
| Motor power/voltage | 3.2kw/220V |
| Air supply | 10L/min 0.6Mpa |
| Working speed | ≤20pcs/min |
| Machine dimension | L1200*W1120*H3100mm |
| Weight of machine | 1150kg |
Company introduction:
Longxingsheng Machinery Co.,Ltd is located in world manufacturer city----Dongguan City, Guangdong Province. The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd. We have independent R&D department. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery`s research, development, manufacturing and selling for more than 13 years. Grooving machine series and rigid box forming series are our main products.
Q: How could I pay?
A1: We prefer T/T or L/C at sight. If you prefer other payment terms, please contact us freely.
Q2: What is your packing way? Can I have the customized package?
A2: We have the standard export package. For more details about the customized package, please contact us.
Q4: Are you a factory or a trading company?
A4: We are a factory. We provide all kinds of OEM/ODM services for clients around the world.
If you have any inquiry, please don't hesitate to contact us. We will reply you at the first time as we can.
