Product Details:
|
| Product Name: | LS-F7 Semi-Automatic Rigid Commercial Premium Shoe Box Wrapping Machine For Rigid Box | Machine Dimension: | L1200*W1250*H3100mm |
|---|---|---|---|
| Type: | Packaging Line | Working Speed: | ＜15 Pcs/min |
| Power: | 3.0 Kw/220V Single Phase | Machine Weight: | 1000kg |
| Highlight: | Rigid Box Wrapping Machine,Rigid Box Wrapping Machine 10mm,Shoe Box Machine 100mm |
||

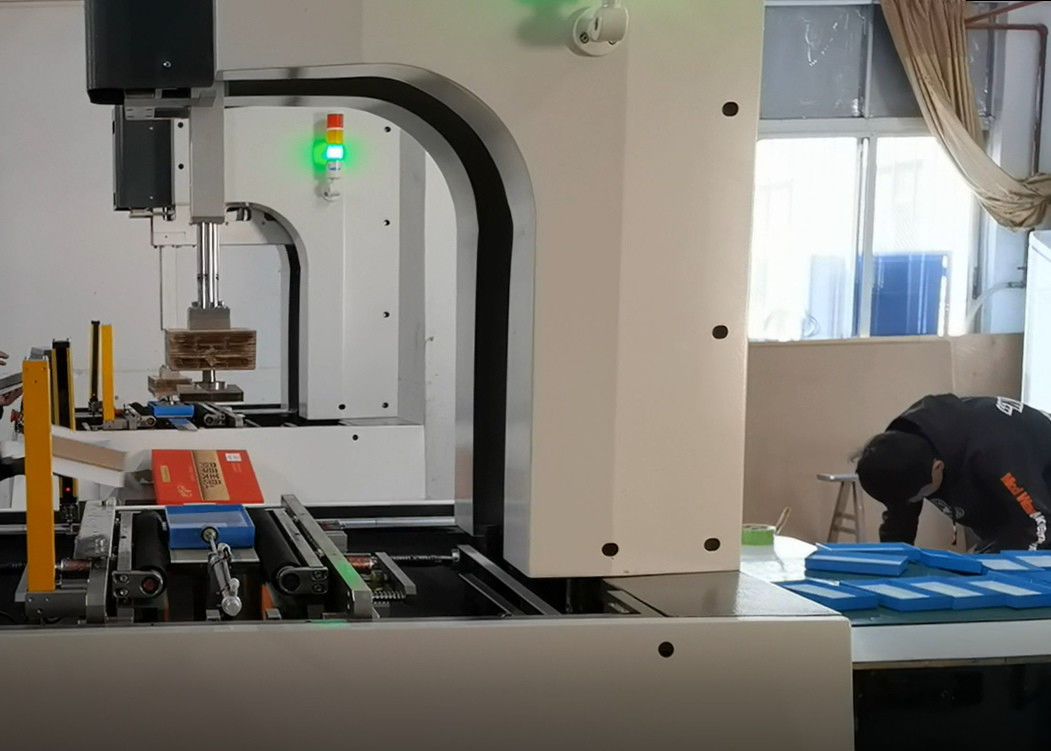

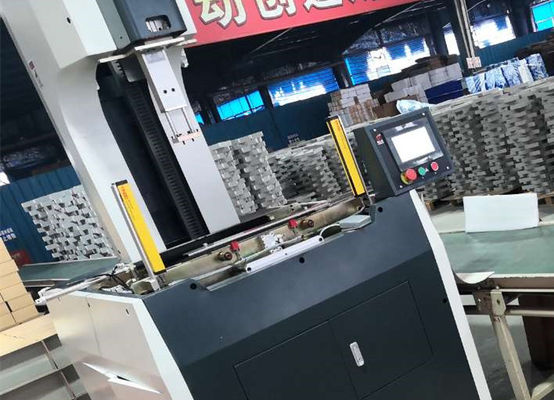

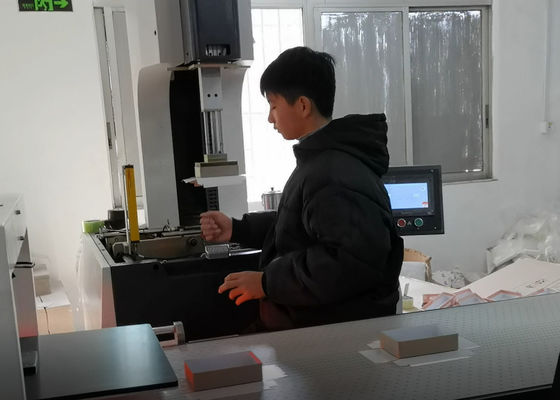

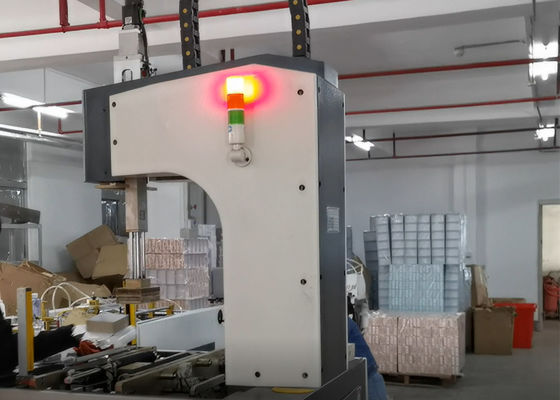

LS-F7 Semi-Automatic Rigid Commercial Premium Shoe Box Wrapping Machine For Rigid box
Load a box to checking the setting and ensure each setting is fine. Then machine can start working. Whole process will cost 8 minutes.
It is an ideal equipment for changable small orders.
LS-F7 Semi-Automatic Box Strapping Machine For Phone Boxes And Gift Boxes is applied for wrapping the cover paper on the pasted box. When we get a new box, installed the box mold on machine, input its data on the LS-F7 touch screen. Including the box length, width, height, cover paper width, top mold height, middle mold height and tucking in blade thickness. Then press caluate, machine will automaitc come to home position and move to setting position.

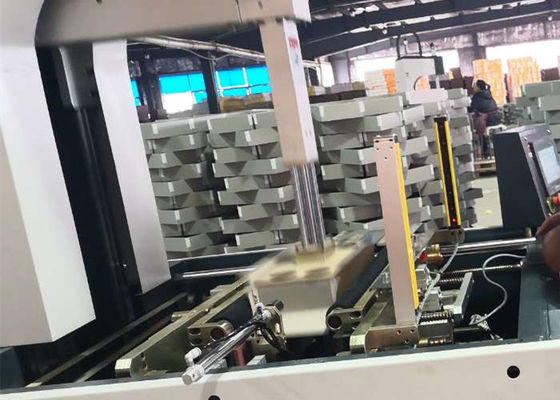

Working process:
1. box positioning on glued paper
2. Long side wrapping
3. Tucking in and edge folding
4. Tucking-in and second floor air pressing
| Type | LS-F7 |
| Max box size | L430*W350*H110mm |
| Min box size | L80*W65*H10mm |
| Motor power/voltage | 3.2kw/220V |
| Air supply | 10L/min 0.6Mpa |
| Working speed | ≤20pcs/min |
| Machine dimension | L1200*W1120*H3100mm |
| Weight of machine | 1150kg |
Company introduction:
Longxingsheng Machinery Co.,Ltd is located in world manufacturer city----Dongguan City, Guangdong Province. The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd. We have independent R&D department. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery`s research, development, manufacturing and selling for more than 13 years. Grooving machine series and rigid box forming series are our main products.
Q: How could I pay?
A1: We prefer T/T or L/C at sight. If you prefer other payment terms, please contact us freely.
Q2: What is your packing way? Can I have the customized package?
A2: We have the standard export package. For more details about the customized package, please contact us.
Q3: What is the delivery lead time?
A3: It depends on the order quantities. The mass production lead time is about 7-12 days after receipt of the deposit.
If you have any inquiry, please don't hesitate to contact us. We will reply you at the first time as we can.
