Product Details:
|
| Product Name: | Semi Automatic Carton Strapping Machine Box Four Sides Folding Box Machine Mobile Cover Making Mahine | Max Box Size: | 430*350*110mm |
|---|---|---|---|
| Min Box Size: | 80*65*10mm | Weight: | 1100kg |
| Automatic Grade: | Semi Automatic | Application: | Commodity, Food, Medical, Machinery & Hardware |
| Dimension(l*w*h): | L1200*W1110*H3100mm | ||
| Highlight: | 10L/min Carton Strapping Machine,Four Sides Carton Strapping Machine,3.2kw Folding Box Machine |
||

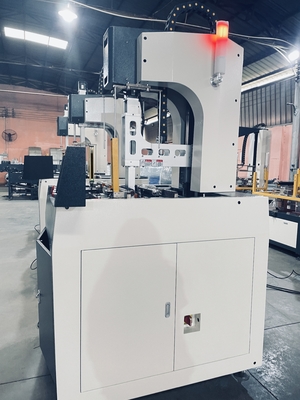

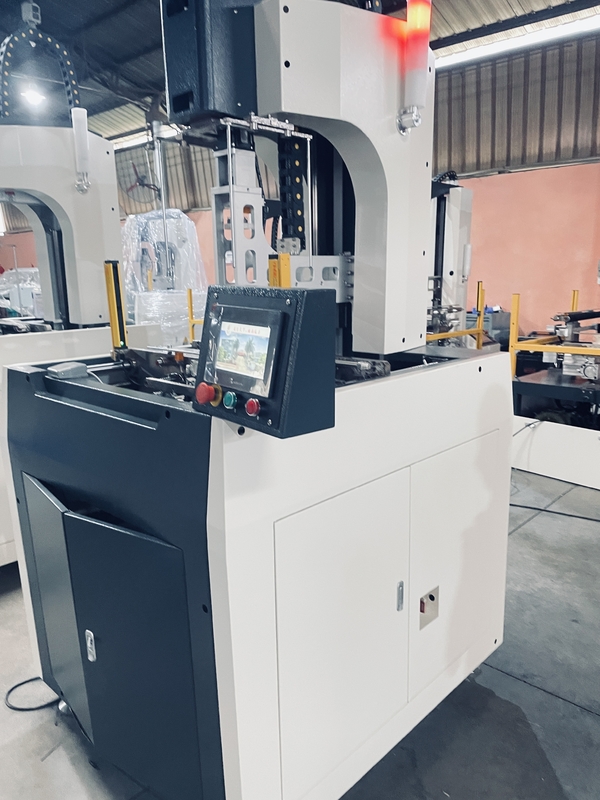

Semi Automatic Carton Box Strapping Machine Four Sides Folding Box Machine Mobile Cover Making Machine
Applications:
LS-F7 Carton Box Strapping Machine is applied for wrapping the cover paper on the pasted box. When we get a new box,only installed the box mold on machine, input its data on the LS-F7 touch screen. Including the box length, width,and height, cover paper width, top mold height, middle mold height and tucking in blade thickness. After the machine automaticalliy calculated, machine will automaitc come to home position and move to setting position. Load a box to checking the setting and ensure each setting is fine. Then machine can start working. Whole process will cost 8 minutes.
Features:
This machine completes hemming, (hemming length ≤ 100mm), hemming and air pressure at one time. There is no need to replace the air pressure plate and take up the film. The air pressure structure is divided into upper and lower layers, and the whole machine takes 3 seconds
It is the ideal equipment for changing small orders.
| Type | LS-F7 |
| Max box size | L430*W350*H110mm |
| Min box size | L80*W65*H10mm |
| Motor power/voltage | 3.2kw/220V |
| Air supply | 10L/min 0.6Mpa |
| Working speed | ≤20pcs/min |
| Machine dimension | L1200*W1120*H3100mm |
| Weight of machine | 1100kg |
Our service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* One year warranty.
Company introduction:
Longxingsheng Machinery Co.,Ltd is located in the famous manufacturing city - Dongguan City,China.
We are one of the leading & professional manufacturer of Automatic/Semi-automatic Rigid Box Making Machines & cardboard grooving machine for varies rigid box making, such as cardboard boxes, luxury boxes, jewelry boxes,calendar, gift boxes, sweet boxes, shoes boxes, watch boxes, mobile phone boxes, high-end boxes and etc.Rigid box making machine, cardboard grooving machine, gluing machine and corner pasting machine are our main products.
