Product Details:
|
| Product Name: | Semi Automatic Rigid Box Forming Machine For Cake Match & Cosmetic Daily Necessities | Machine Dimension: | L1350*W1100*H3000mm |
|---|---|---|---|
| Machine Weight: | 1100kg | Air Supply: | 10L/min 0.6mpa |
| Edge Folding Size: | 10-90 Mm | Turn In Depth: | 0-65 Mm |
| Voltage: | 220V/380V | Automatic Grade: | Automatic |
| Packaging Type: | Film,Wood,Paper | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Condition: | New | Warranty: | 1 Year |
| Highlight: | 0.6mpa Rigid Box Forming Machine,Rigid Box Forming Machine 10L/min,Cake Rigid Box Wrapping Machine |
||

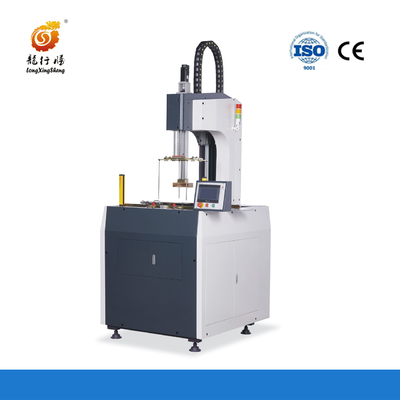

Semi Automatic Rigid Box Forming Machine For Cake Match & Cosmetic Daily Necessities
Molds are composed of upper mold, middle mold, lower mold, which are divided into
Plastic mold and wooden mold according to the material mold
Ordinary mold and Son-Mother mold according to the use type of mold.
Ordinary mold is suitable for the boxes which are not folded to the end.
Son-Mother mold is suitable for boxes which are fold-to-bottom, fold-to-bottom and turned over, much thinner.
It is recommended that Son-Mother mold is conducive to returning material and boxes whose height is less than 60mm.
Features:
When we get a new box, install the box mold on the machine, input its data on the LS-F7 touch screen. Including box length, width, height, cover paper width, upper mold height, middle mold height and jackknife thickness. Then press caluate, the machine will automatically return to the starting position and move to the set position. Load up a box to check the settings and make sure everything is fine. Then the machine can start working. The whole process will take 8 minutes.
It is an ideal equipment for changable small orders.
Working process:
1. Box positioning on adhesive paper
2. The paper are tuck into the box & edge
| Type | LS-F7 |
| Max box size | L430*W350*H110mm |
| Min box size | L80*W65*H10mm |
| Motor power/voltage | 3.2kw/220V |
| Air supply | 10L/min 0.6Mpa |
| Working speed | ≤20pcs/min |
| Machine dimension | L1200*W1120*H3100mm |
| Weight of machine | 1150kg |
Company introduction:
Longxingsheng Machinery Co.,Ltd is located in world manufacturer city----Dongguan City, Guangdong Province. The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd. We have independent R&D department. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery`s research, development, manufacturing and selling for more than 13 years. Grooving machine series and rigid box forming series are our main products.
Q: How could I pay?
A1: We prefer T/T or L/C at sight. If you prefer other payment terms, please contact us freely.
Q2: What is your packing way? Can I have the customized package?
A2: We have the standard export package. For more details about the customized package, please contact us.
Q3: Are you a factory or a trading company?
A3: We are a factory. We provide all kinds of OEM/ODM services for clients around the world.
