Product Details:
|
| Product Name: | LS-F7 Semi-Automatic Rigid Small Gift Jewelry Box Wrapping Machine For Rigid Box | Machine Dimension: | L1200*W1120*H3000mm |
|---|---|---|---|
| Working Speed: | ＜19 Pcs/min | Power: | 3.2kw/220V |
| Machine Weight: | 1150kg | Max Box Size: | 430*350*110mm |

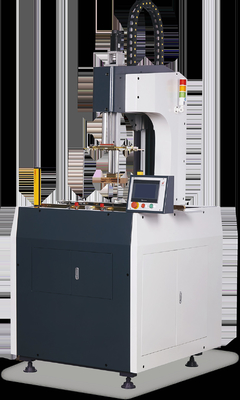

LS-F7 Semi-Automatic Rigid Small Gift Jewelry Box Wrapping Machine For Rigid box
The maximum box size that LS-F7 can make is 450*380*100mm, the minimum box size is 80*65*10mm, and the ear folding length is 10-100mm. This machine has a non-adjustable ear folding device, and the machine has a running lock device to ensure that the data size remains unchanged during operation.
The high side folding brush consists of a roller brush, folding ear brush, edge plate, and presser plate, and the roller brush firmly adheres the sides of the plywood and box blank. Next, use a folding brush to fit the small ears of the carton tightly onto the box embryo. Next, fold the left unattached carton into the box with the edge board and press firmly against the sides of the carton and box embryos. Pressing with pressure plate he tightens the box body to reduce air bubbles between carton and box embryo and improve product quality.
Features:
LS-F7 semi-automatic mobile phone box gift box binding machine is suitable for bundling cover paper into glued boxes. When a new box arrives, you attach the box mold to the machine and enter the data into the LS-F7's touchscreen. Includes box length, width, height, cover paper width, top mold height, middle mold height, and folding blade thickness. Then press calculate, the machine will automatically return to the starting position and move to the set position. Load the box and check the settings to make sure everything is correct. Then the machine can start working. The whole process takes him 8 minutes.
It is an ideal equipment for changable small orders.
Working process:
1. Tucking in and edge folding
2. First floor air pressing
3. Short side wrapping
4. Tucking-in and second floor air pressing
| Type | LS-F7 |
| Max box size | L430*W350*H110mm |
| Min box size | L80*W65*H10mm |
| Motor power/voltage | 3.2kw/220V |
| Air supply | 10L/min 0.6Mpa |
| Working speed | ≤20pcs/min |
| Machine dimension | L1200*W1120*H3100mm |
| Weight of machine | 1150kg |
Company introduction:
Longxingsheng Machinery Co., Ltd. is located in Dongguan City, Guangdong Province, a world-famous manufacturing city. The original company name was Dongguan Longxingsheng Machinery Co., Ltd. Our company has an independent research and development department. Currently, we have obtained more than 20 patents, including utility patents, appearance patents, and technology patents. Our company is specialized in research, development, manufacturing and sales of post-press machinery for over 13 years. Slotting machine series and sky and ground box forming series are our main products.
Our company adheres to the business principles of "professionalism, focus, customer first" and insists on surviving through quality, pursuing efficiency through strict management, and developing through creativity. We will strive to build a national brand and contribute our strengths to the printing and packaging industry.
Q: How could I pay?
A1: We prefer T/T or L/C at sight. If you prefer other payment terms, please contact us freely.
Q3: What is the delivery lead time?
A3: It depends on the order quantities. The mass production lead time is about 7-12 days after receipt of the deposit.
Q4: Are you a factory or a trading company?
A4: We are a factory. We provide all kinds of OEM/ODM services for clients around the world.
If you have any inquiry, please don't hesitate to contact us. We will reply you at the first time as we can.
