Smart Intelligent Adjusting Rigid Box Making Machine for Wine Box

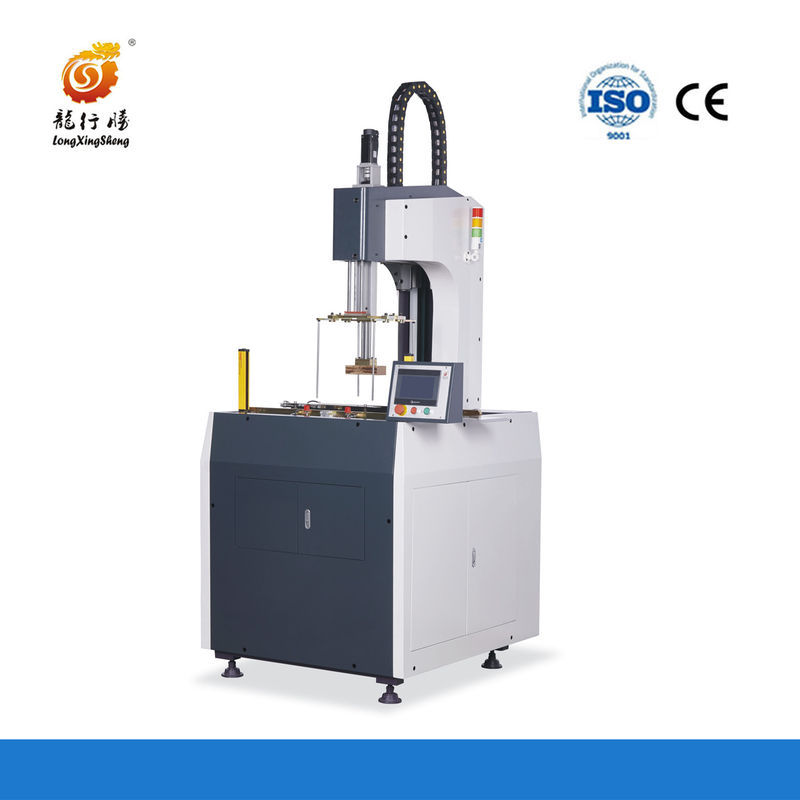

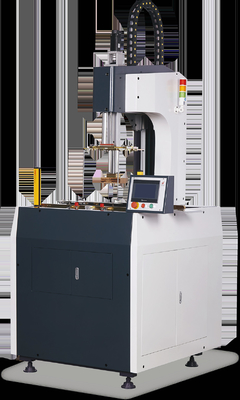

LS-F7 Introduction

F7 is a machine for forming various boxes, such as shoe boxes, gift boxes and so on. The operator only needs to set the parameters of the box on the touch screen, and the machine will automatically make the box according to the parameters. The operation of F7 is simple and convenient, and it is suitable for the production of various boxes, such as shoe boxes, gift boxes, etc.

Our rigid box formers are versatile pieces of equipment that can process boxes of all sizes and styles, making them ideal for businesses of all sizes. With its advanced technology, the machine can quickly and efficiently create custom boxes that meet your specific requirements.

Whether you want to improve your box packaging process, simplify your box forming operation, or simply increase productivity and efficiency, our rigid box formers are the perfect solution.

LS-F7 intelligent top and bottom cover box making machine is used to wrap cover paper on pasted boxes. When we get the new box, install the box mold on the machine and enter its data on the LS-F7 touch screen. Width, height, cover paper width, upper mold height, middle mold height, folding knife thickness, and then press the calculation, the machine will automatically return to the original position and move to the set position. OK, the machine can start working, the whole process It takes 8 minutes. This machine can complete hemming, hemming (folding length ≤ 100mm), hemming and air pressure at one time. No need to replace the air pressure plate or folding blade. The air pressure structure is divided into two layers, and the time it takes for the whole machine to complete one box is about 3 seconds. It is an ideal equipment for small and variable orders.

The LS-F7 intelligent top-to-ground cover box making machine is used to wrap cover paper on pasted boxes. When we get a new box, install the box mold on the machine and enter its data on the LS-F7 touch screen. Including box length, width, height, cover paper width, upper mold height, middle mold height, and folding blade thickness. Then press Calculate and the machine will automatically return to the starting position and move to the set position. Load a box to check the settings and make sure everything is correct. Then the machine can start working. The whole process takes 8 minutes.

This machine can complete hemming, folding (folding length ≤100mm), folding and air pressure at one time. No need to replace the air plate, plug in the blade. The air pressure structure is divided into two layers, and it only takes about 3 seconds for the whole machine to complete a box.

It is an ideal equipment for small and variable orders.

Working process:

1. box positioning on glued paper

2. Long side wrapping

3. Tucking in and edge folding

4. First floor air pressing

5. Short side wrapping

6. Tucking-in and second floor air pressing
