Product Details:
|

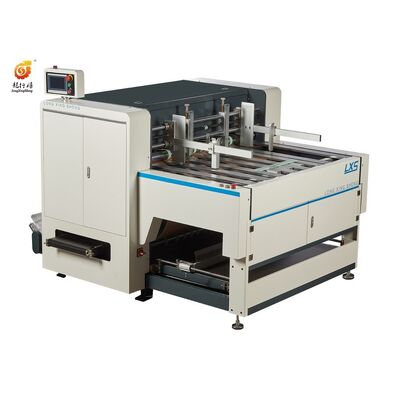

LS-S1 Automatic Cardboard Slitting Machine is designed for high-precision slitting, delivering clean, smooth edges on every cut. Ideal for packaging and rigid box professionals who value speed and reliability.

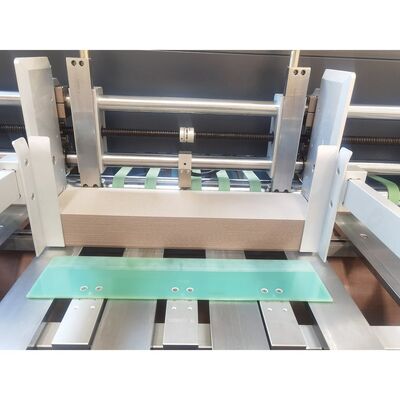

Simply load a pile of cardboard onto the machine, and the push plate feeds each sheet one by one automatically.
One-click size adjustment — enter the desired cardboard dimensions and the LS-S1 automatically calculates the optimal slitting configuration.

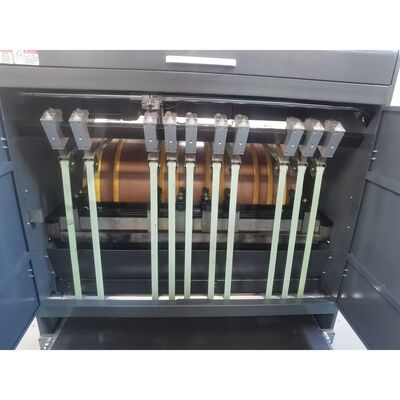

Enter the target dimensions and both blades and belt move automatically to the correct positions. Convenient operation with high efficiency.
Save time and boost efficiency by selecting stored recipes for recurring orders. No need to re-enter dimensions each time.

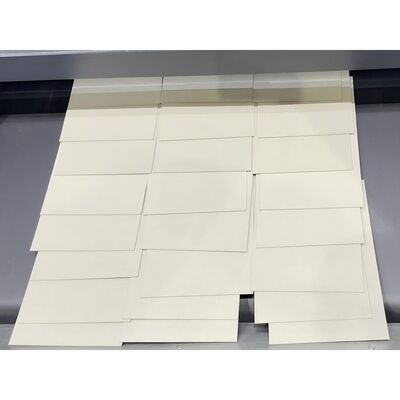

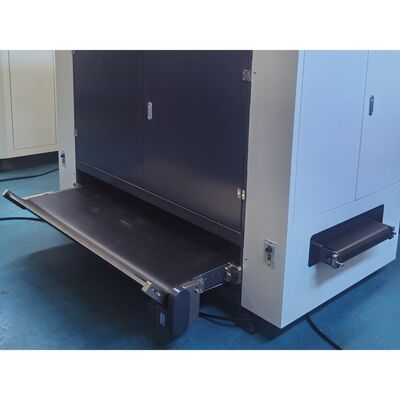

Waste and finished boards are delivered separately. Operators collect the clean finished products while waste falls directly into a collection bin — no sorting time, no mess on the floor.
| Machine model | LS-S1 |
| Slitting blades quantity | 6 blades |
| Slitting quantity | 1-5 / sheet |
| Working speed | 10-20 m/min |
| Max size | L1200 × W900 mm |
| Min size | L140 × W100 mm |
| Slitting accuracy | ±0.15 mm |
| Cardboard thickness | 1-2.8 mm |
| Blade adjustment method | Digital automatic adjustment |
| Belt adjustment method | Electric adjustment |
| Air supply | 10 L/min, 0.6 MPa |
| Motor power | 4 kW / 380 V / 3 phase |
| Machine dimension | L2300 × W1900 × H1650 mm |
| Machine weight | 1530 KG |
Machine video: Watch on YouTube
LXS specializes in rigid box making and cardboard processing machines. Send us your board size, thickness and daily output, and we will match a slitting configuration to your line.
