Product Details:
|

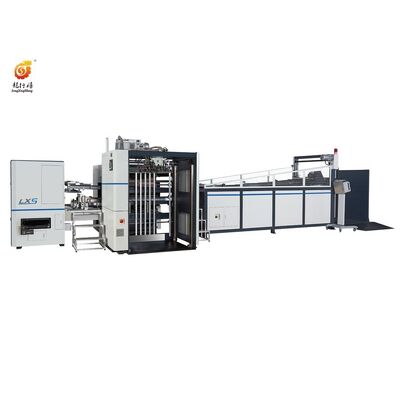

LS-S3 Fully Automatic Cardboard Slitting Machine with Palletizer completes two-pass slitting in one continuous process and stacks finished boards automatically at 400-1000 mm, removing manual collection from the line.

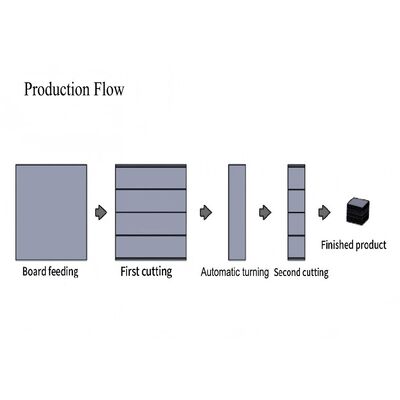

First-pass slitting, then automatic 90° sheet rotation for second-pass cross-cutting — one continuous process with 6 high-performance blades.
The palletizer stacks finished products automatically with auto-aligning stacking. No manual collection needed — high efficiency with significant labour savings.
Load a pile and the machine feeds each sheet one by one automatically, up to L1200 × W900 mm input.

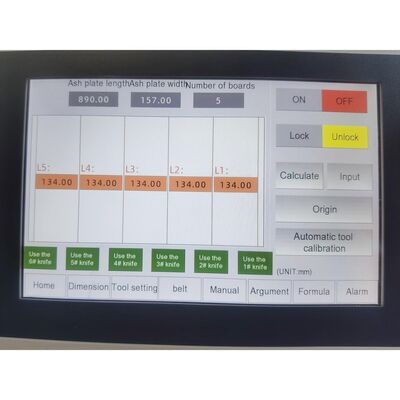

Enter the desired board dimensions and the machine calculates and sets the optimal slitting configuration.
Blades and belt move automatically to the target positions after the size is entered.

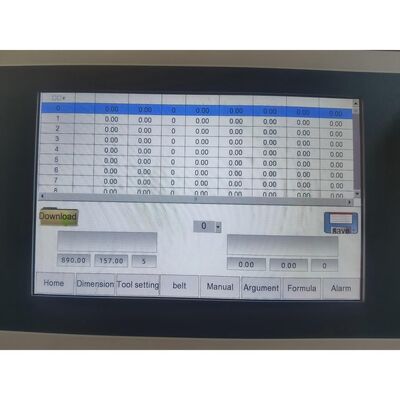

Stored recipes for recurring orders remove repeated dimension entry.
| Machine model | LS-S3 |
| Slitting blades quantity | 6 blades |
| First slitting quantity | 5 sheet |
| Second slitting quantity | 5 sheet |
| Working speed | 15-60 m/min |
| Max cardboard slitting size | L1200 × W900 mm |
| Min cardboard slitting size | L800 × W700 mm |
| Finished product max size | L900 × W600 mm |
| Finished product min size | L140 × W140 mm |
| Stacking height | 400-1000 mm |
| Stacking method | Auto-aligning stacking |
| Slitting accuracy | ±0.15 mm |
| Cardboard thickness | 1-3 mm |
| Blade adjustment method | Digital automatic adjustment |
| Belt adjustment method | Electric adjustment |
| Air supply | 10 L/min, 0.6 MPa |
| Motor power | 17 kW / 380 V / 3 phase |
| Machine dimension | L10500 × W5500 × H2500 mm |
| Machine weight | 6700 KG |
Machine video: Watch on YouTube
LXS specializes in rigid box making and cardboard processing machines. Send us your board size, thickness and daily output, and we will match a slitting configuration to your line.
