Product Details:
|
LS-S2 Fully Automatic Cardboard Slitting Machine completes first-pass slitting, then automatically rotates the sheet 90° for second-pass cross-cutting — all in one continuous process, with automatic big-sheet feeding and 6 high-performance blades.
The LS-S2 completes the first-pass slitting, then automatically rotates the sheet 90° for the second-pass cross-cutting. No manual re-loading between passes, no queuing between machines.

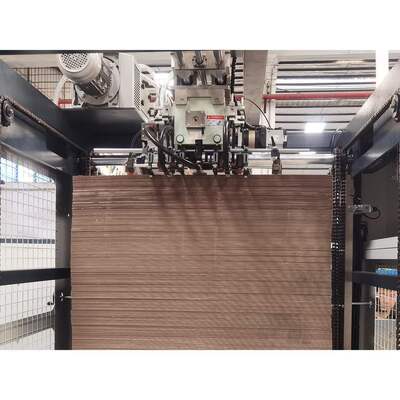

Load a pile onto the machine and it feeds each sheet one by one automatically — suited to full-size greyboard sheets up to L1200 × W900 mm.
One-click size adjustment: enter the desired cardboard dimensions and the machine calculates the optimal slitting configuration.

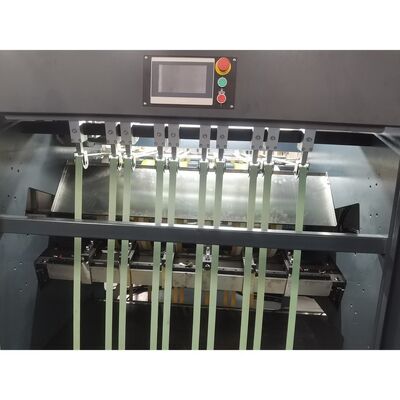

Both blades and belt move automatically to the target positions — convenient operation with high efficiency.
Select stored recipes for recurring orders instead of re-entering dimensions each time.

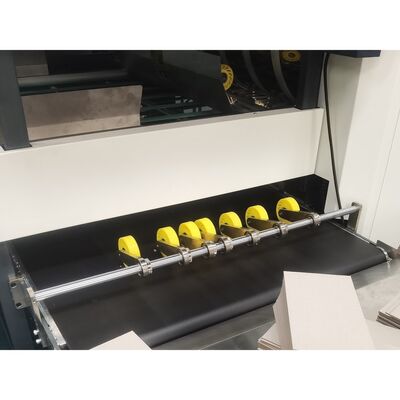

Finished boards are collected manually at the outfeed. The LS-S2 does not include a palletizer — for automatic stacking choose the LS-S3.
| Machine model | LS-S2 |
| Slitting blades quantity | 6 blades |
| First slitting quantity | 5 sheet |
| Second slitting quantity | 5 sheet |
| Working speed | 15-60 m/min |
| Max cardboard slitting size | L1200 × W900 mm |
| Min cardboard slitting size | L800 × W700 mm |
| Finished product max size | L900 × W600 mm |
| Finished product min size | L140 × W140 mm |
| Slitting accuracy | ±0.15 mm |
| Cardboard thickness | 1-3 mm |
| Blade adjustment method | Digital automatic adjustment |
| Belt adjustment method | Electric adjustment |
| Air supply | 10 L/min, 0.6 MPa |
| Motor power | 14 kW / 380 V / 3 phase |
| Machine dimension | L4800 × W5500 × H2500 mm |
| Machine weight | 5500 KG |
Machine video: Watch on YouTube
LXS specializes in rigid box making and cardboard processing machines. Send us your board size, thickness and daily output, and we will match a slitting configuration to your line.
