Product Details:
|
| Certification: | CE, ISO | Product Name: | LS-450B Rigid Box Visual Positioning Machine For Gift Box/ Shoe Box/ Cell Phone Boxes |
|---|---|---|---|
| Colour: | Black & White | Type: | Rigid Box Positioning Machine |
| Working Speed: | 15-36 Pcs/min | Application: | Rigid Box/ Gift Box Making |
| Dimension(L*W*H):: | L5980*W3180*H2106 | Weight Of Machine: | 1920kg |
| High Light: | Visual Positioning Machine,Rigid Box Positioning Machine,36pcs/min Shoe Rigid Box machine |
||

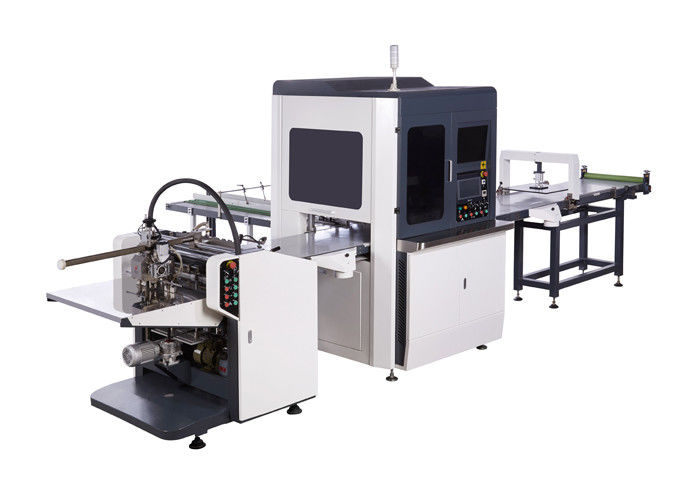

LS-450B Rigid box visual positioning machine for gift box/ shoe box/ cell phone boxes
Introduction:
LS-450B Rigid box visual positioning machine for gift box/ shoe box/ cell phone boxes is a core parts for rigid box production.
Because the visual positioning is more stable and high positioning accuracy than manual positioning, and the speed is faster. it have been widly used for making rigid box.
Nowadays, the visual positioning has been applied in the production of rigid box, gift box, shoe box, cellphone box, cosmetic box, ring box, jewelry box, tea box etc. The working model able to change by one button. The visual positioning system is able to be upgraded.
6. Panasonic Servo motor feeding.
7. Storage function for the positioning part, easy to adjustment

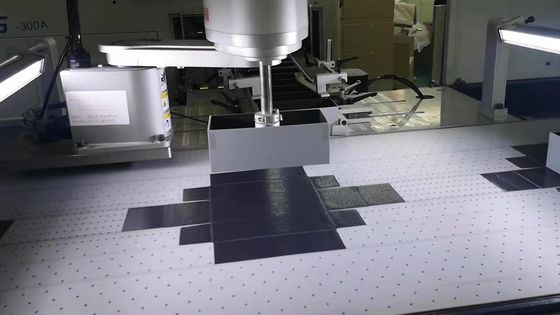

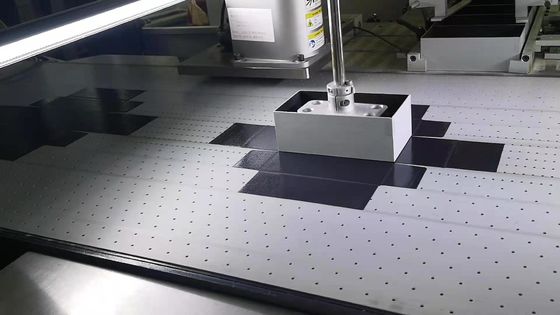

Two 10-megapixel cameras can capture tissues in a wide range to improve accuracy
Can handle different colors of cover paper, such as black, white, red, green, blue etc.
Local Language Operation System: Local language operation system avialable, including Russian,Turkish, Italian etc.
Paper feeder
| Type | LS-450B |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size |
L430*W350*H100mm |
| Min box size | L80*W65*H15mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 6.8kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-35 sheets/min |
| Machine dimension | L5980*W3180*H2100mm |
| Weight of machine | 2100kg |
Company profile:
Our online-service:
We will create a Wechat group to provide online service during day and night, including the professional engineers inside. If machine has problem during the warranty time and not caused by wrong operation, buyer shall send video or pictures so that seller can figure out the exact problem. What‘s more, seller shall give technical support to buyer.
