Product Details:
|
| Product Name: | Gift Box Paper Gluing Machine & Box Positioning And Pasting Machine For Rigid Box | Application: | Rigid Box/hard Cover/Case Positioning & Paper Lining |
|---|---|---|---|
| Working Speed: | 15-42 Pcs/min | Warranty: | 1 Year |
| Colour: | Black & White & Blue | Weight Of Machine: | 2123kg |
| High Light: | Gift paper gluing machine,Positioning paper gluing machine,ISO9001 Pasting paper machine |
||

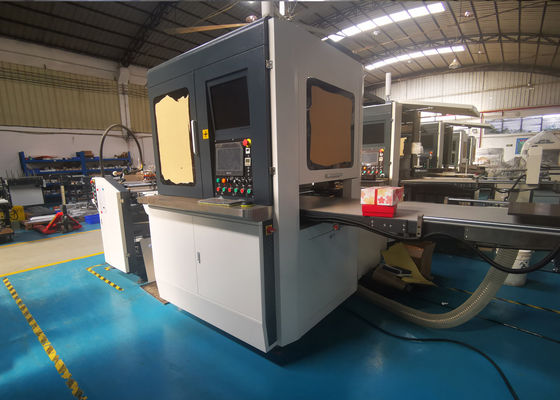

Gift Box Paper Gluing Machine & Box Positioning And Pasting Machine For Rigid Box
Introduction:

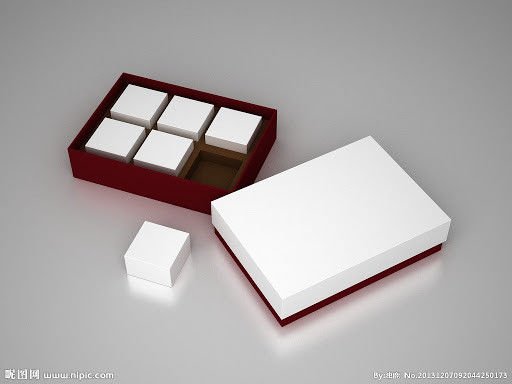

Gift Box Paper Gluing Machine & Box Positioning And Pasting Machine For Rigid Box. This is a really useful box making machine, which is also called as rigid box gluing and spotter machine. It can finish paper gluing and pasting box on the glued paper automatically, means which is widely used for rigid box making, book cover machine, game board paper lining and even album making.
LS-450plus different part introduction

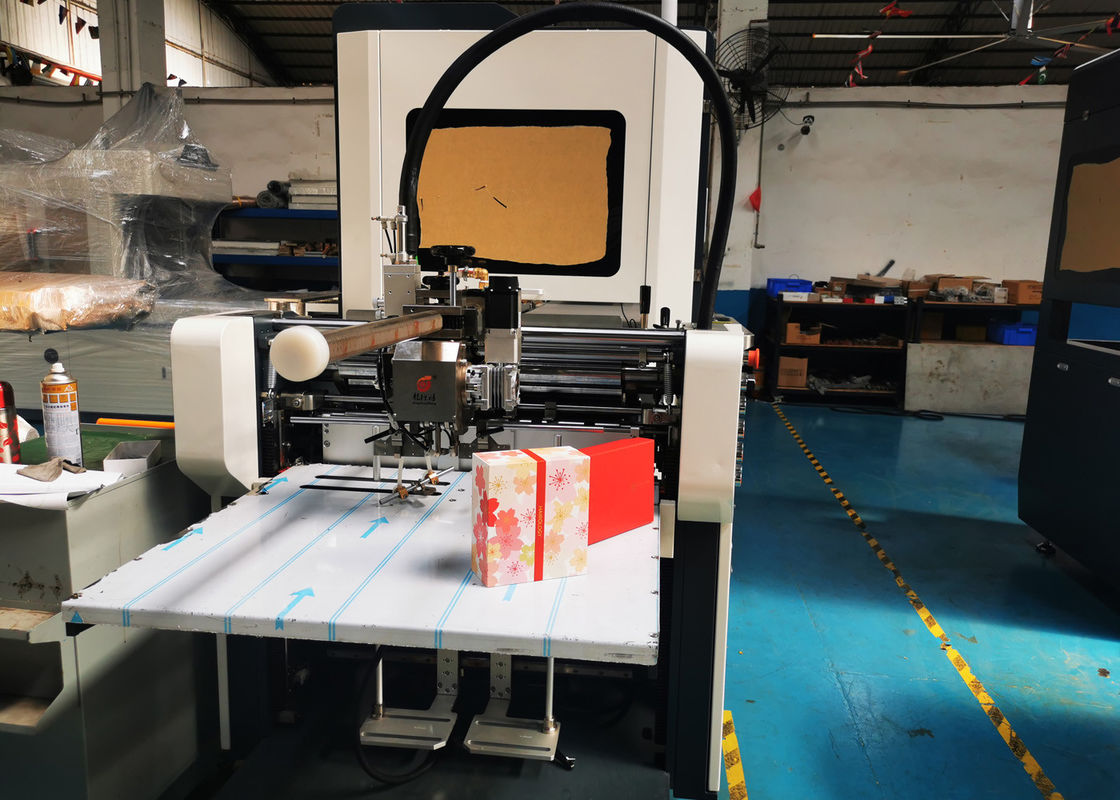

Paper feeding table:The paper can be placed on the table and separated by feeder. When the paper is reduced, the table will automatically rise to the paper suction position. When re loading the paper, the table needs to be lowered manually, which can be raised or lowered through the side button.
Feeder feeding paper:The neatly stacked paper sheets are separated into the glue passing mechanism.
Gluing system:Feeder will feeding paper into the drum, after the role of the drum, glue evenly coated on the face of the paper, the scraper will separate the face paper from the drum, the paper will be transported to the positioning part by the conveyor belt.
Box pressing:The positioning finished face paper and the box are reinforced at the bottom.
Paper roller:The paper that has not finished positioning with the box or the residual paper on the conveyor belt is recycled to reduce the probability of secondary scrap.
Glue tank:After the glue is melted, it is transported to the glue passing mechanism, and a specific time can be set to heat the glue.
| Type | LS-450plus |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size | L600*W400*H120mm |
| Min box size | L80*W65*H15mm |
| Book cover (Max) | L750*W450mm |
| Book cover (Min) | L150*W100mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 7.5kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-45 sheets/min |
| Machine dimension | L5980*W3180*H2100mm |
| Weight of machine | 2100kg |
Company profile:
Dongguan Longxingjian Intelligent Equipment Co.,Ltd
We are one of the leading & professional manufacturer of Grooving machines and Fully Automatic/Semi-automatic Rigid Box Making Machine in Dongguan, China Since 2006. As a packaging technology company, we own 120 workers, more than 10 years experience, ISO & CE certificated, less than two hours reach Guangzhou or Shenzhen port, this is how we keep good quality and competitive prices for global valued customers.
We have independent R&D department. Until now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery's research, development, manufacturing and selling for more than 15 years. Grooving machine series and rigid box forming series are our main products.
We hold "professional, focus, customer first" as our operating principle, insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing&Packaging industry.
