Product Details:
|
| Product Name: | Box & Hard Cover Positioning Machine With Multi-Function And Short Time Adjustment | Application: | Gift Box/book Cover Making |
|---|---|---|---|
| Working Speed: | 1500 Pcs/h | Type: | Multi-Function Packaging Machine |
| Dimension(L*W*H):: | L5983*W3182*H2100 | Weight Of Machine: | 2109kg |
| Highlight: | Box Hard Cover Positioning Machine,Positioning Machine gift box,Positioning Machine 1500pcs/h |
||

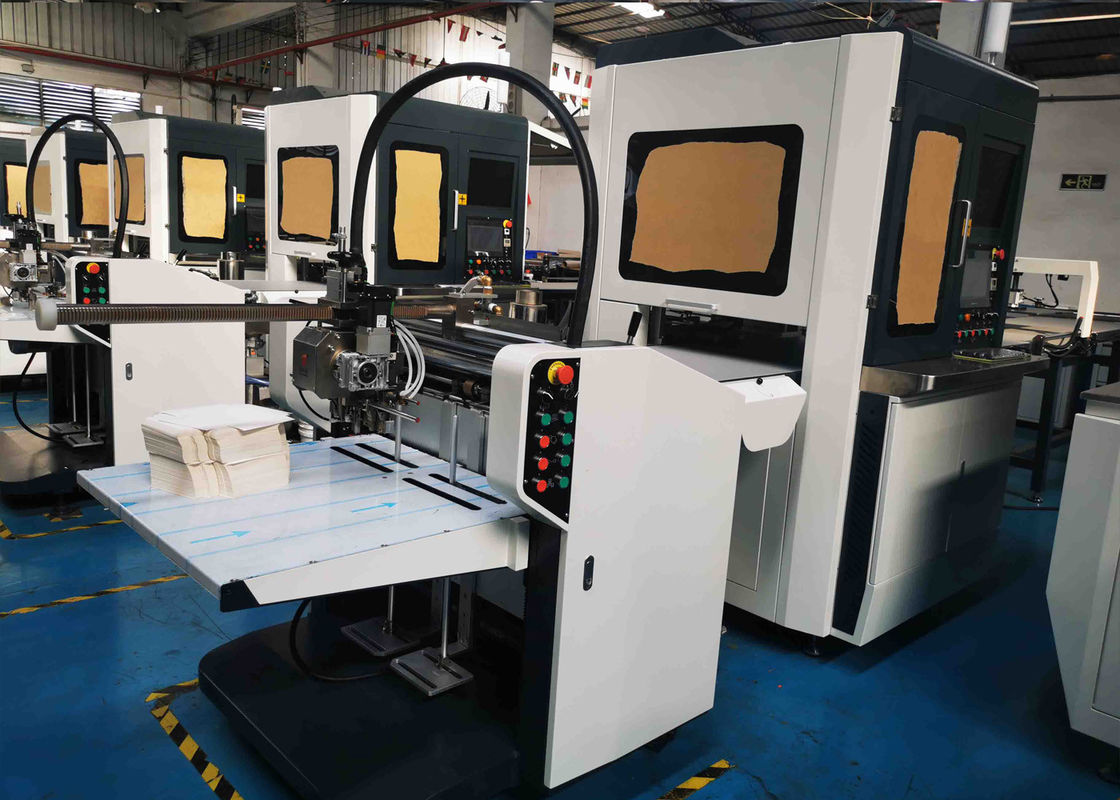

Box & Hard Cover Positioning Machine With Multi-Function And Short Time Adjustment
Introduction:

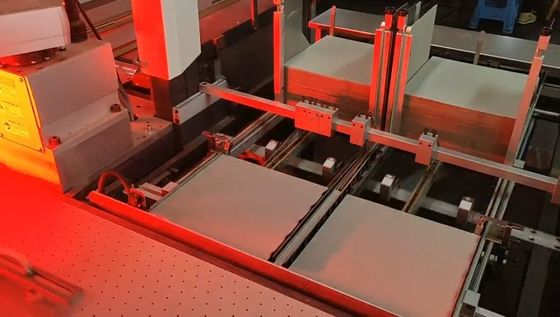

Box & Hard Cover Positioning Machine With Multi-Function And Short Time Adjustment. This machine is also called as gluing and spotter machine. It can finish paper gluing and pasting box on the glued paper automatically, which is widely used for rigid box making, book cover machine, paper lining and even album making.

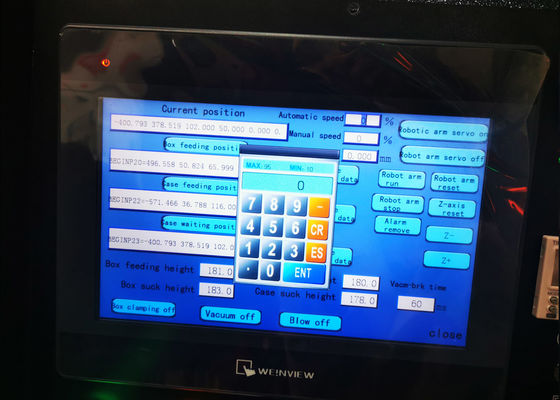

As the visual positioning has stable and high positioning accuracy than manual positioning. It has faster model changing speed than sensor positioning. The fastest setting time of visual positioning part is 7-8 minutes.
The function of the "paper roller" is to roll up the paper which is not pasted the paper on the conveyor belt to prevent the paper from jamming in other positions. By turning the "adjusting hand wheel", the tightness between the "rolling rollers" can be adjusted.
7. Panasonic Servo motor feeding system.
| Type | LS-450plus |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size | L600*W400*H120mm |
| Min box size | L80*W65*H15mm |

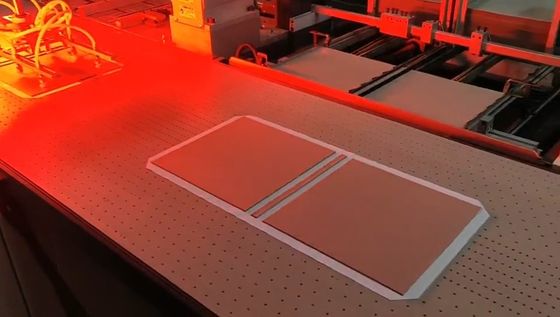

| Book cover (Max) | L750*W450mm |
| Book cover (Min) | L150*W100mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 7.5kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-45 sheets/min |
| Machine dimension | L5980*W3180*H2100mm |
| Weight of machine | 2100kg |
Company profile:
Dongguan Longxingjian Intelligent Equipment Co.,Ltd
We are one of the leading & professional manufacturer of Grooving machines and Fully Automatic/Semi-automatic Rigid Box Making Machine in Dongguan, China Since 2006. As a packaging technology company, we own more than 120 workers, more than 15 years experience, ISO & CE certificated, less than two hours reach Guangzhou or Shenzhen port, this is how we keep good quality and competitive prices for global valued customers.
We have own R&D department when we esablish our company in 2006. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery's research, development, manufacturing and selling for more than 13 years. Grooving machine series and rigid box forming series are our main products.
We hold "professional, focus, customer first" as our operating principle, insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing & Packaging industry.
Our service:
Pre-sale service:
* Inquiry and consulting support.
* Sample testing support.
* Factory visit.
* Details communication
* Order confirmation
After-sale service:
* Machine installation and training in customer factory.
* Engineers available to service machinery overseas.
* On-line technology support.
* Free machine parts replacement during warranty.
* Whole life of machine after-sales service.
