Product Details:
|
| Product Name: | Positioning Machine For Gluing Rigid Box Paper And Paste Box With Paper Together | Application: | Rigid Box/hard Cover/Case Positioning/ Paper Lining |
|---|---|---|---|
| Warranty: | 1 Year | Colour: | Black & White & Blue |
| Dimension(L*W*H):: | L5981*W3182*H2103 | Weight Of Machine: | 2190kg |
| High Light: | Positioning Machine For Gluing Rigid Box,2190kg Positioning Machine,L5981mm Rigid Box machine |
||
Positioning Machine For Gluing Rigid Box Paper And Paste Box With Paper Together
Introduction:

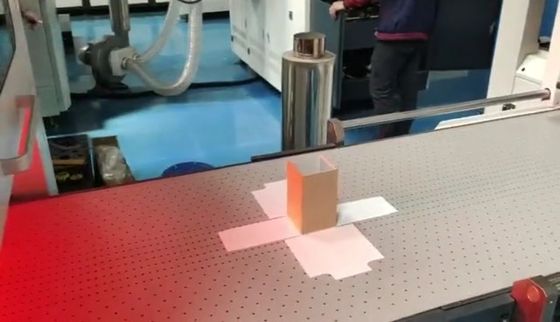

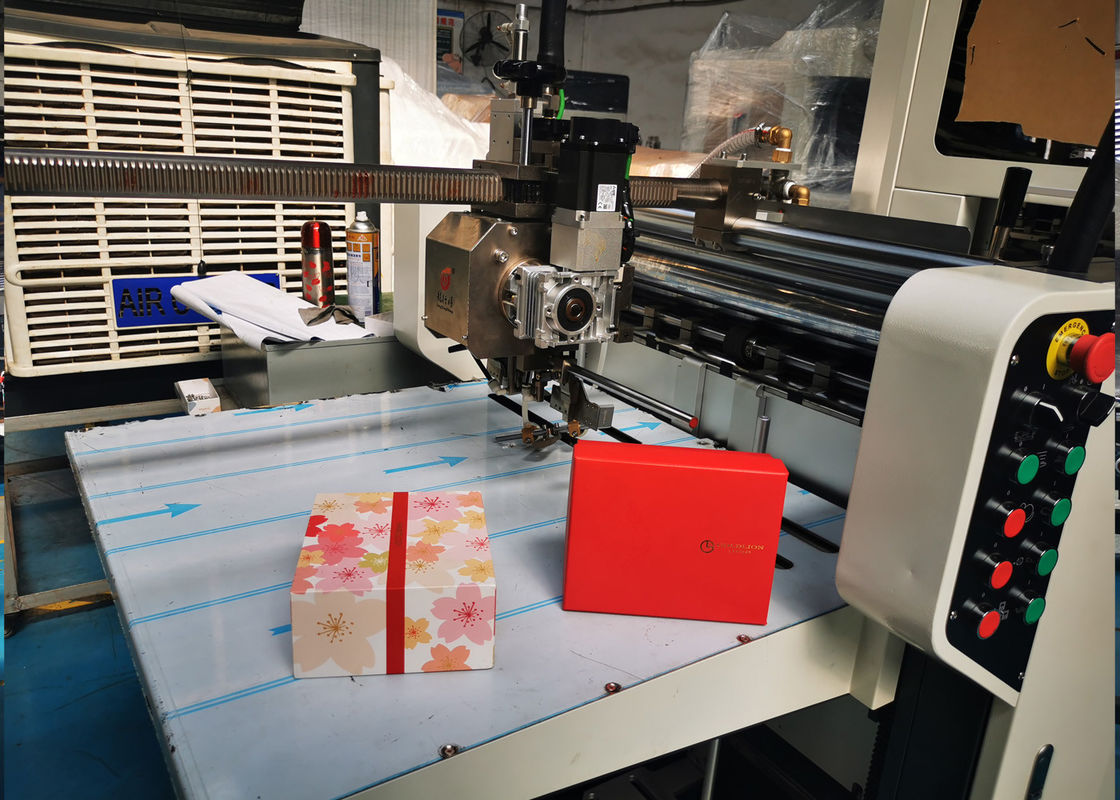

Positioning Machine For Gluing Rigid Box Paper And Paste Box With Paper Together. This is a useful box making machine, which is also called as gluing and spotter machine. It can finish rigid box paper and pasting box with paper together automatically, which is widely used for rigid box making, book cover machine, paper lining and even album making.
Nowadays, the visual positioning machine has been applied in the production of rigid box, gift box, shoe box, cellphone box, cosmetic box, ring box, book cover, case, hard cover etc.
Gluing system of positioning machine introduction:
When the paper is glued, the drum must be turned on and then the glue is drawn. The glue will flow out from the glue outlet above the drum. First adjust the "paper roller" and the paper feed roller in sequence according to the thickness of the paper. Then adjust the position of the scraper according to the size of the paper. Generally, the scraper is at least one in the middle of the paper and one on each side. If the number of scrapers is too small, the paper may not be completely scraped off.
7. Panasonic Servo motor feeding system.
| Type | LS-450plus |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size | L600*W400*H120mm |
| Min box size | L80*W65*H15mm |
| Book cover (Max) | L750*W450mm |
| Book cover (Min) | L150*W100mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 7.5kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-45 sheets/min |
| Machine dimension | L5980*W3180*H2100mm |
| Weight of machine | 2100kg |
Company profile:
Dongguan Longxingjian Intelligent Equipment Co.,Ltd
We are one of the leading & professional manufacturer of Grooving machines and Fully Automatic/Semi-automatic Rigid Box Making Machine in Dongguan, China Since 2006.
We have independent R&D department. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery's research, development, manufacturing and selling for more than 15 years. Grooving machine series and rigid box forming series are our main products.
We hold "professional, focus, customer first" as our operating principle, insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing&Packaging industry.
Our service:
Pre-sale service:
* Inquiry and consulting support.
* Sample testing support.
* Factory visiting
* Order confirmation
After-sale service:
* Machine installation and training in customer factory.
* Engineers available to service machinery overseas.
* On-line technology support.
* Free machine parts replacement during warranty.
* Whole life of machine service.
