Product Details:
|
| Product Name: | Automatic Rigid Box V Grooving Machine 30m/Min Cardboard MDF And Thin Paper Grooving Machine | Automatic Grade: | Automatic |
|---|---|---|---|
| Working Speed: | 30m/min | Cardboard Thickness: | 0.8~4mm |
| Machine Dimension: | L2050*W1520*H1350mm | Machine Weight: | 1250kg |
| Color: | White | ||
| Highlight: | Automatic V cut machine 30m/min,LS-1200Plus Automatic V cut machine,30m/min cardboard MDF grooving machine |
||

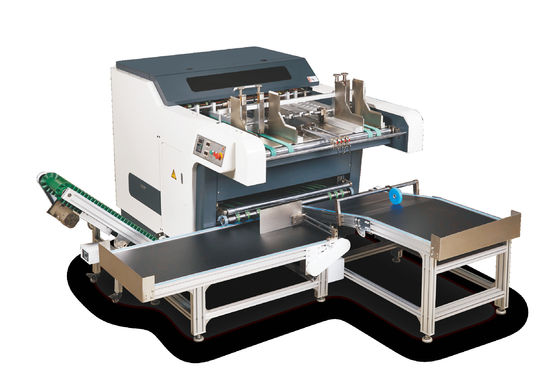

Automatic Rigid Box V Grooving Machine 30m/Min Cardboard MDF And Thin Paper Grooving Machine
LS-1200pro Automatic V cut machine is using for carton V shape slots grooving. It can groove at 80-140 degree V slots. It can groove 8 slot at a time (Depend on paper size). Working speed is 40m/min, around 100-200 pcs/min.
|
Machine model
|
LS-1200plus
|
|
Quantity of groove at a time
|
8 slots
|
|
Working speed
|
40m/min(100-200pcs/min)
|
|
Cardboard size
|
140*120-1000*600mm
|
|
Cardboard thickness
|
0.8-4mm
|
| Carton paper thickness | 500-800g/m² |
|
Motor power
|
2.5Kw/380v 3 phase
|
|
Machine dimension
|
L2050*W1550*H1350mm
|
|
Machine weight
|
1430kg
|
Blade seats are consists of high accuracy sliding block and rotation gear wheel, make operation easier
Narrow and wide belts ensures setting any grooving position, Suitable for more products
Single side aligning and double sides aligning function which are suitable for products.
Integration paper separating system which has been special surface processing ensures anti-wear and durable.
Measure has been etching on the rod, Models changing more easier and efficiency.
