Product Details:
|
| Product Name: | Hardcover Making Machine & Box Wrapping Machine & Paper Lining | Warranty: | 1 Year |
|---|---|---|---|
| Type: | Multi-Function Packaging Machine | Colour: | Black & White & Blue |
| Speed: | 15-40 Pcs/min | Application: | Rigid Box Positioning Machine |
| Dimension(L*W*H):: | L5980*W3185*H2109 | ||
| Highlight: | Hardcover V Groove Cutter Machine,15pcs/min V Groove Cutter Machine,Box Wrapping Paper Lining machine |
||

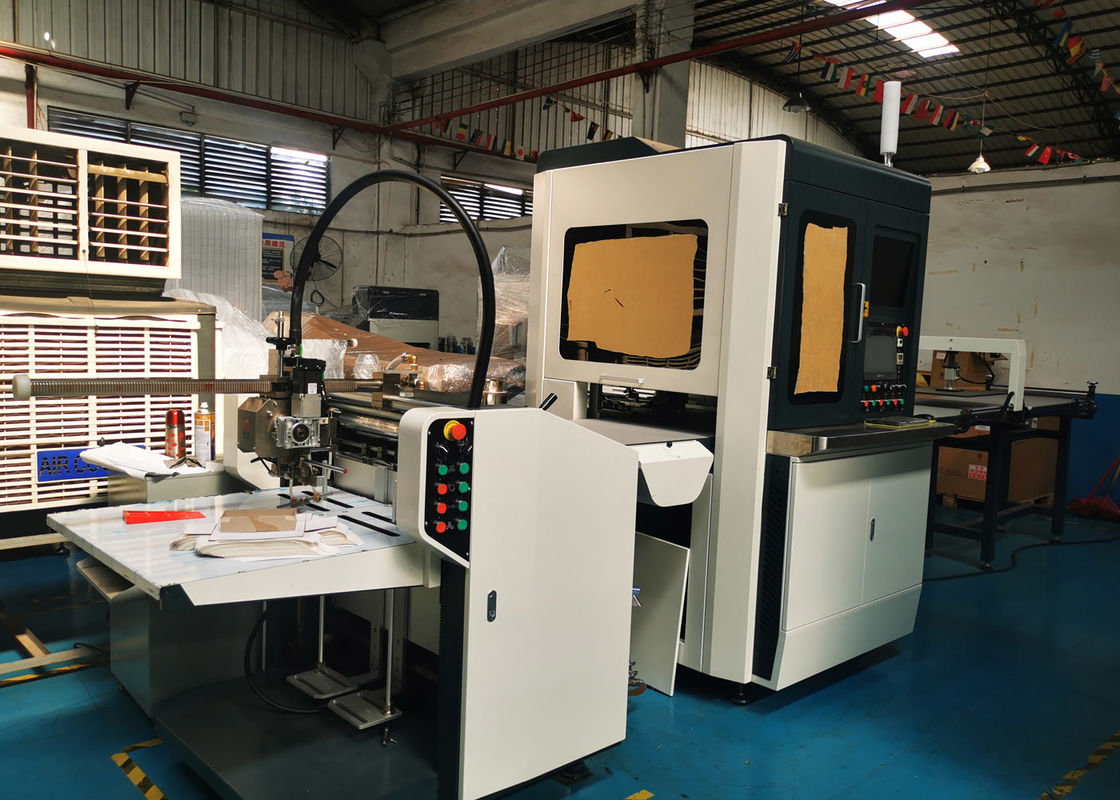

Hardcover Making Machine & Box Wrapping Machine & Paper Lining
Introduction:
LS-450plusVisual box positioning machine is an automatic production equipment integrating gluing and positioning
7. Panasonic Servo motor feeding system.
8. Storage function for the positioning part, easy to set
| Type | LS-450plus |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size | L600*W400*H120mm |
| Min box size | L80*W65*H15mm |
| Book cover (Max) | L750*W450mm |
| Book cover (Min) | L150*W100mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 7.5kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-45 sheets/min |
| Machine dimension | L5980*W3180*H2100mm |
| Weight of machine | 2100kg |
