Product Details:
|
| Product Name: | Mobile Phone Box Making Machine With Short Setting Time And Panasonic Servo Motor | Type: | Rigid Box And Case Positioning Machine |
|---|---|---|---|
| Warranty: | 1 Year | Weight Of Machine: | 1856kg |
| Automatic Grade: | Automatic | Certification: | CE, ISO |
| Highlight: | W100mmMobile Box Making Machine,1856kg Mobile Box Making Machine,L135mm Box manufacturing Machine |
||
Mobile Phone Box Making Machine With Short Setting Time And Panasonic Servo Motor
Introduction:
LS-450B Rigid box visual positioning machine focus on making gift box, shoe box, cell phone boxes, mobile phone box, perfume boxes, which is an important parts for rigid box production. It can finish gluing paper and paste the paper on the glued paper. It is widely applied since 2017.
LS-450B Automatic Visual Positioning Machine. It is revolutionary product in rigid box making. In the past, most rigid box positioning is applied the manual spotting or the sensor box positioning. Enclosed is the rigid box making process. The box spotting is core of box making. Which combine the cardboard and paper together with help of glue.

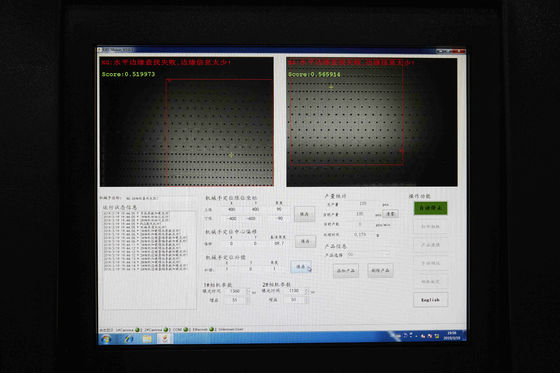

So that we have developed our box positioning machine with the camera assist technology and Robotic arm from Yamaha. The camera assist technology’s principle is taking photos of paper, then deliver the picture’s data to IPC, the Visual software in IPC will calculating the position of paper.
5. Automatic paper feeding system.
Two 10-megapixel cameras can capture tissues in a wide range to improve accuracy
Can handle different colors of cover paper, such as black, white, red, green, blue etc.
Local Language Operation System:Local language operation system avialable, including French, Vietness, Spanish, Russian,Turkish etc.
| Type | LS-450B |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size |
L430*W350*H100mm |
| Min box size | L80*W65*H15mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 6.8kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-35 sheets/min |
| Machine dimension | L5990*W3180*H2100mm |
| Weight of machine | 2100kg |
Company profile:
Dongguan Longxingjian Intelligent Equipment Co.,Ltd is located in world manufacturer city----Dongguan City, Guangdong Province.
The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd. We have our own independent R&D department. Up to now, we have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery's research, development, manufacturing and selling for more than 15 years. Grooving machine series and rigid box forming series are our main products.
Our online-service:
We will create a Wechat group to provide online service, including one or two engineer inside. If machine has problem during the warranty time which is not caused by wrong operation, buyer shall send video or pictures so that seller can figure out the exact problem. What‘s more, seller shall give technical support to buyer.
